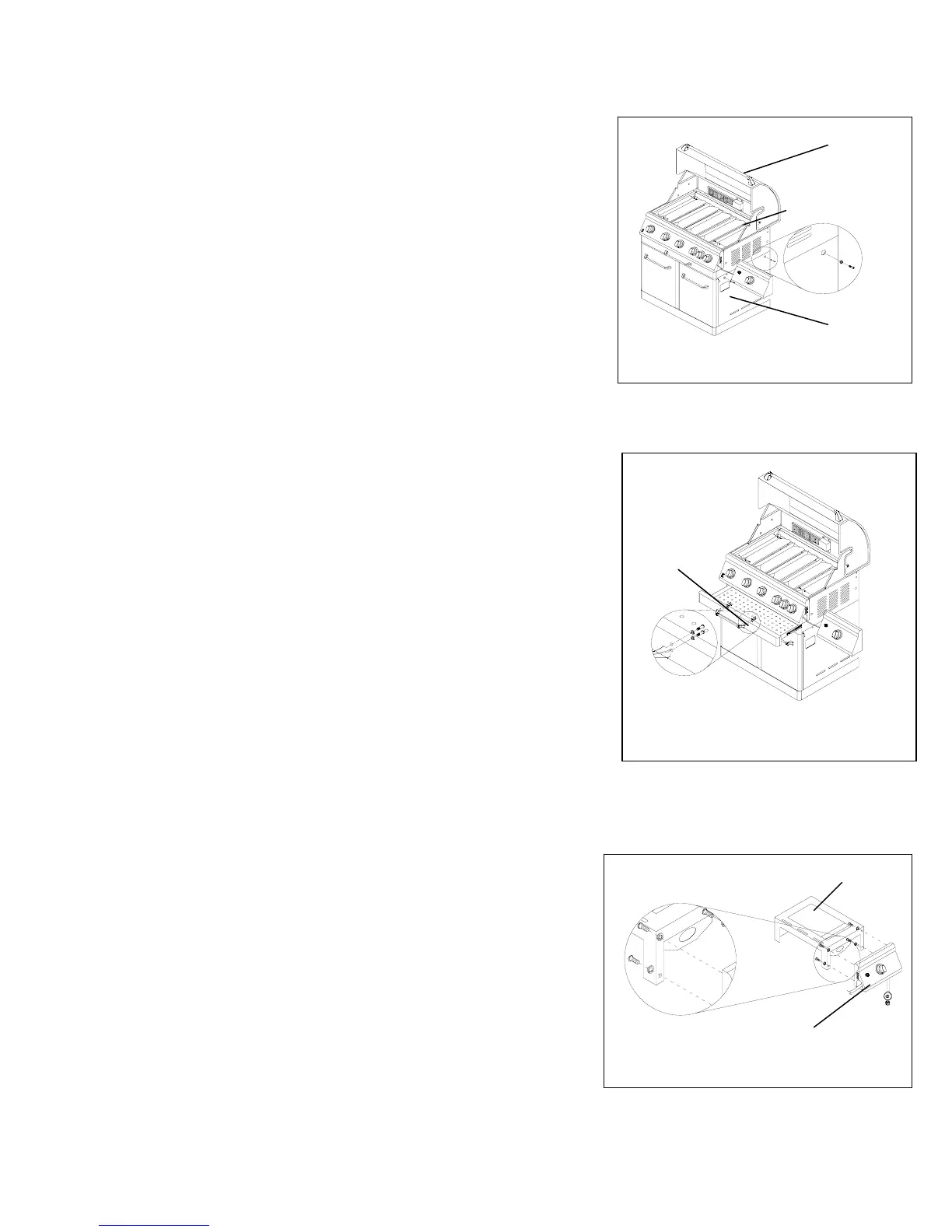

Fig. 11
Attach the firebox assembly (A) to the grill cart (B) using four
1/4-in. x 15-mm truss head screws from pack C and four 1/4-
in. locking washers from pack D as shown in fig. 11.
10. Utility Drawer Handle Assembly
Attach the utility drawer handle (A) to the utility drawer using
four 5/32-in. x10-mm truss head screws from pack A and four
5/32-in. locking washers from pack B as shown in fig. 12.
11. Searing Side Burner Control Panel Assembly
Attach the side burner bowl assembly (A) to the control
panel (B) using four 1/4-in. x 15-mm truss head screws from
pack C and four 1/4-in. locking washers from pack D as
shown in fig. 13.
Fig. 13
A
A
B
B
Fig. 12
A
12
