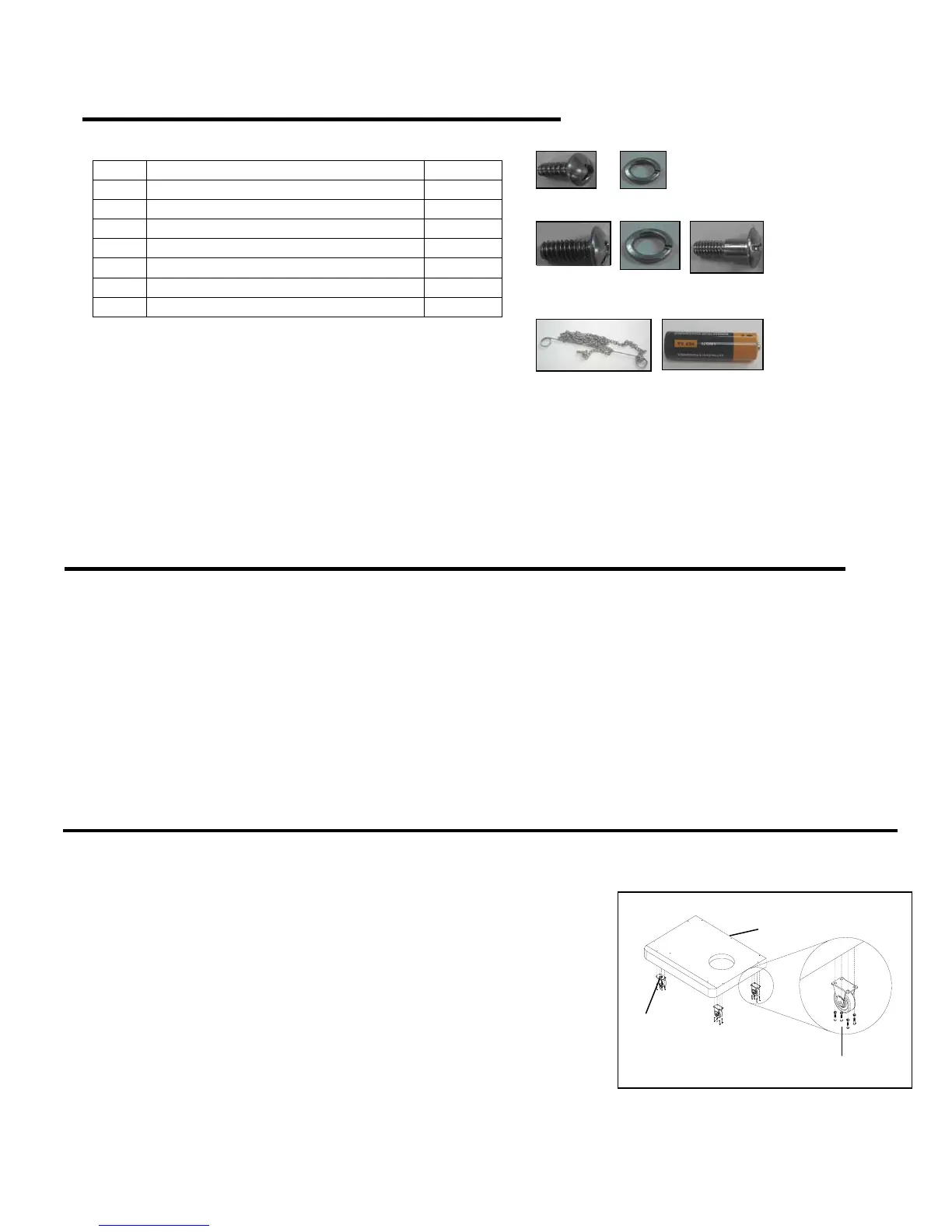

HARDWARE CONTENTS
Pack Description Quantity
A 5/32-in. x 10-mm Truss Head Screw 24 pcs.
A
B
B 5/32-in. Locking Washer 24 pcs.
C 1/4-in. x 15-mm Truss Head Screw 45 pcs.
D 1/4-in. Locking Washer 45 pcs.
1-2
E 5/32-in. x 15-mm Ladder Bolt 1 pc.
F Lighting Rod 1 pc.
G Battery / AAA 1 pc.
Before beginning assembly, installation or operation of product, make sure all parts are present. Compare
parts with package contents list and diagram above. If any part is missing or damaged, do not attempt to
assemble, install or operate the product. Contact customer service for replacement parts.
• Estimated Assembly Time: 50 minutes
• Tools Required for Assembly: Phillips Screwdriver (not included) and Wrench (not included)
1. Caster Assembly
Mount the casters onto the bottom panel (A) using sixteen
1/4-in. x 15-mm truss head screws from pack C and sixteen
1/4-in. locking washers from pack D.
The swivel caster with brake should be positioned under the
left rear of the cart bottom and the swivel caster should be
positioned under left front (C) as shown in fig. 1. The two
stationary casters (B) should be positioned under the right
side.
PREPARATION
ASSEMBLY INSTRUCTIONS
Fig. 1
B
C
C D E
F G
8
