1/01 E Service Instructions 10

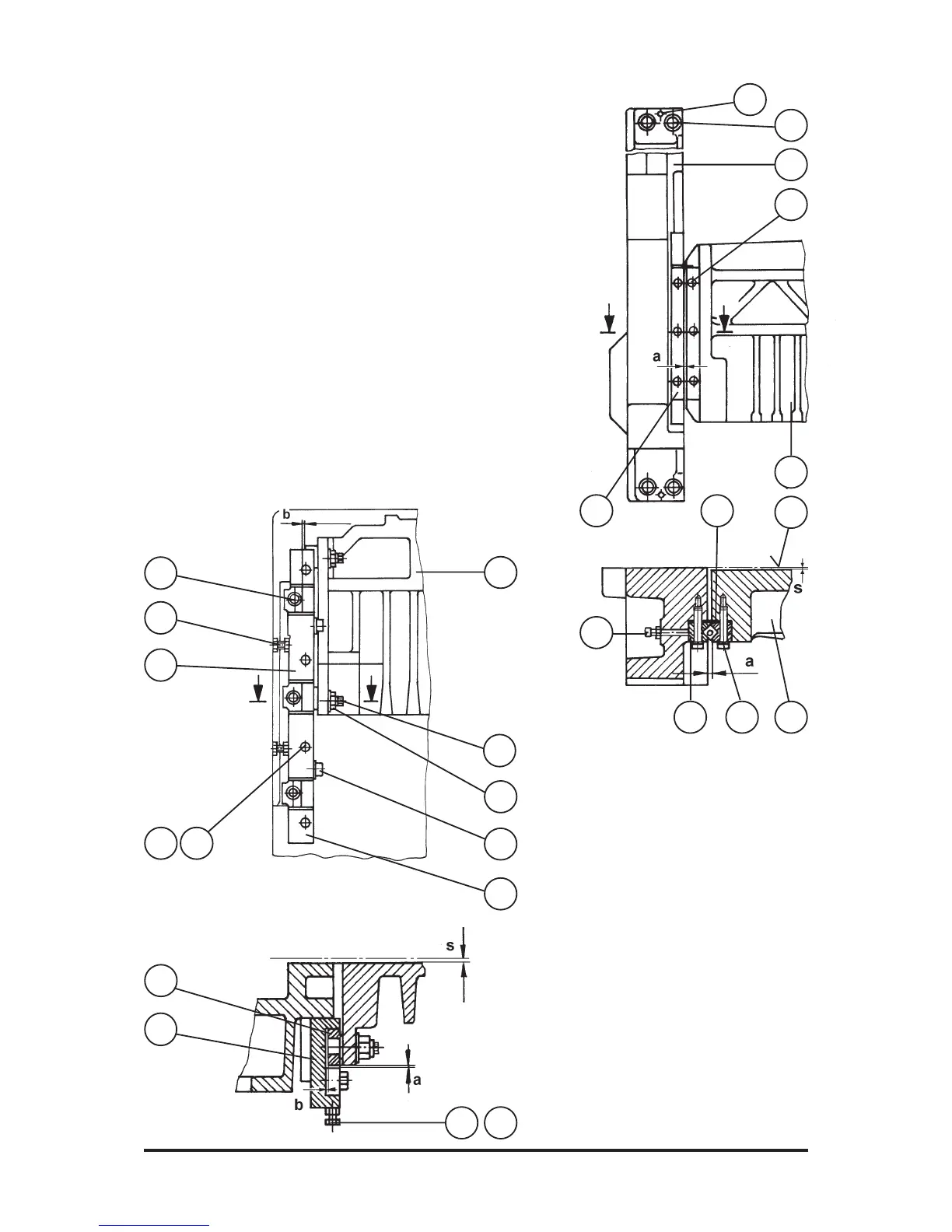

Machine Size 92 (Fig. 8)
Fig. 8 shows shims 3 under pre-
tensioned roller guideway 4 by
means of which the position of
clamp 1 with respect to cutting
line 2 was set in the factory.
Inserting shim 3 between clamp
1 and roller guideway 4 mini-
mizes gap s by the shim thick-
ness, while removing shim 3 in-
creases the gap.
For the proper procedure, refer
to "Play in the Clamp Guideway".
Machine Sizes 115/132 (Fig. 9)
• Slacken lower nuts 3 at the
clamp left and right sides.
• Slightly turning eccentric pins 4
(both sides uniformly) moves the
clamp away from or towads the
cutting line.
Check gap s across the entire
cutting width with a feeler gauge.
• When jamming the nuts, ensure
that the positions of the eccentric
pins are locked.
Fig. 8
Fig. 9
Play in the Clamp
Guideways
Machine Size 76 (Fig. 7)
• Slacken screws 6 of adjusting
strip 7.
• Move adjusting strip 7 against
clamp guideway 4 with eccentric
pin 8 until play a between both
parts is < 0.05 mm.
When performing this setting,
ensure that clamp guideway 4
rests on guide strip 9 of the oppo-
site side. For this purpose, press
the clamp towards the knife.
5
8
7
6
1
2
34
184
9
3
7
8
5 6
1
9
65
12
11
10
10
4
