RUDDER SYSTEM

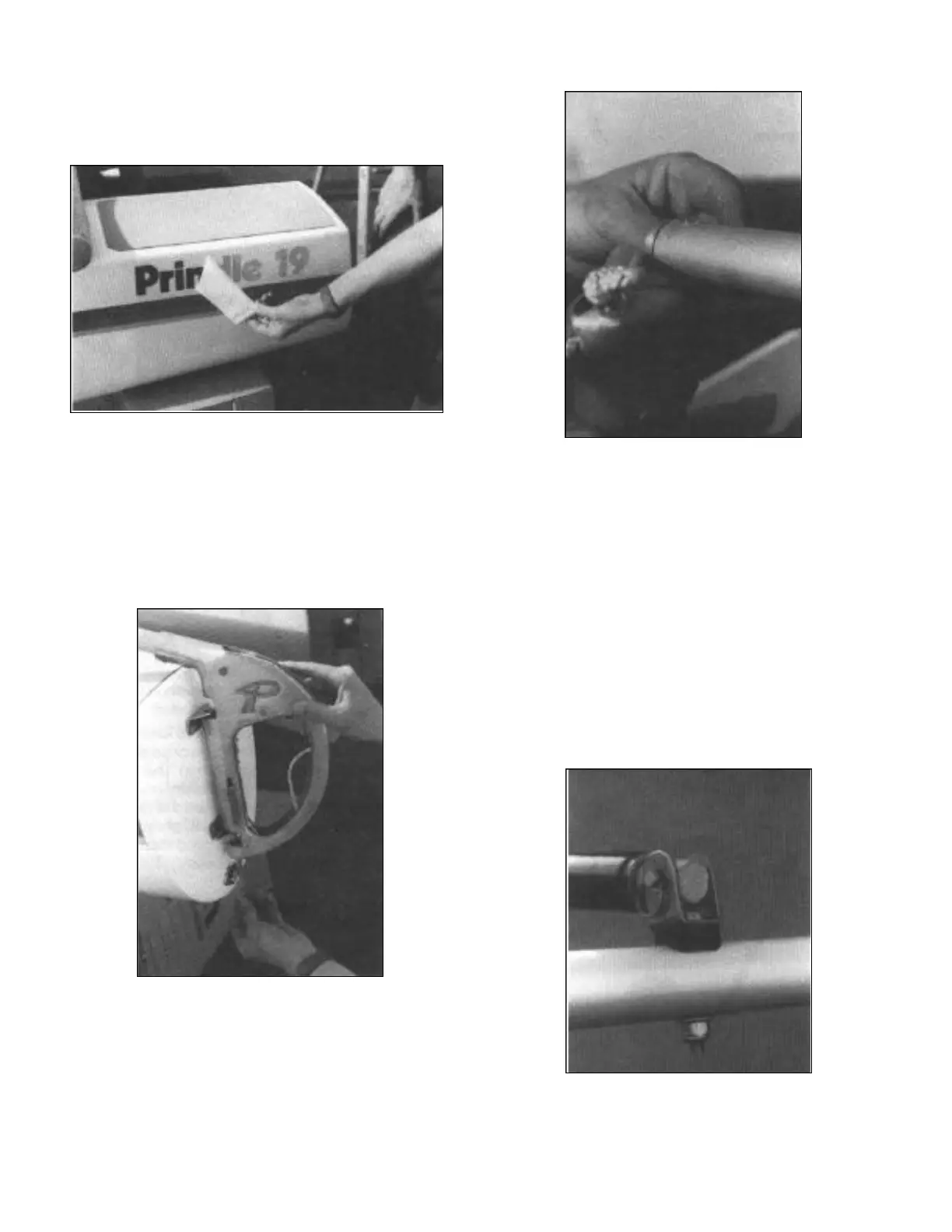

Remove cradles out from under hulls and peel
off protecting paper from Prindle logo on hull.
Open rudder box, it should contain: left &
right rudder castings with tiller arms and com-
plete workings installed, and two rudder
blades with lock pins attached.
CASTINGS
To install rudder castings onto transom, make
sure Prindle insignia is on outboard side.
Remove cotter key and pintle from casting.
Line up casting with gudgeons on transom
and reinsert pintle through gudgeons and
casting.
TILLER CROSSBAR
To attach tiller crossbar to tiller arms, remove
1/4" bolt, washer, and lock nut from end of
tiller arm. Place tiller crossbar over tillers with
large hole at end facing up and end cap pop
rivet facing aft. Drop 1/4" bolt down through
crossbar, putting washer between tiller cross-
bar and tiller arm. Insert 1/4" bolt through
hole in tiller arm and put lock nut on end.
Make sure lines inside tiller go on either side
of bolt, do not cross them. Do not put the nut
on the bolt at adjuster end of crossbar until
rudders have been aligned (instructions
later).
TILLER EXTENSION
Remove lock nut from end of tiller extension.
Attach extension to tiller crossbar and re-
attach lock nut.
11
