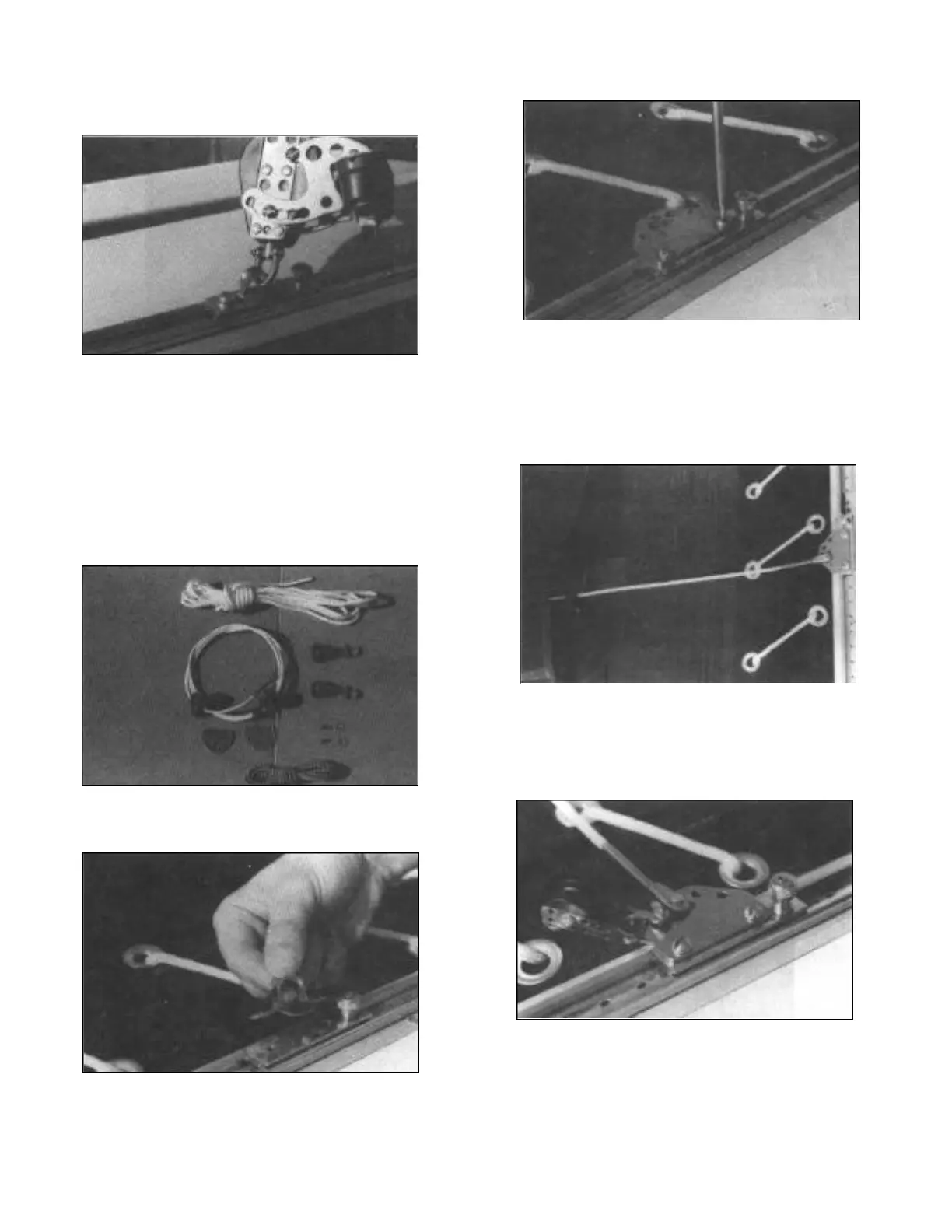

STANDARD JIB SYSTEM
Attach jib block to padeye on side jib tracks.
Note: there will be an aluminum cleat on the
deck just forward on the jib track, this is for
future addition of the 4-way jib system as is
the "sock" on the trampoline.
DELUXE 4-WAY JIB SYSTEM
The parts are included in a separate bag.
If the jib cars have installed padeyes remove
them since they will not be used.
Attach jib adjuster plate to both sides.
Attach jib crosswire to adjuster plate, leading
wire through the tramp sock, choosing one of
four middle holes on each side so the wire is
snug. NOTE: You may find it necessary to
remove the plate to put the "O" ring on the
clevis pin.
Attach the small bullet blocks to the forward
most hole on each adjuster plate using a
3/16" shackle.
8
