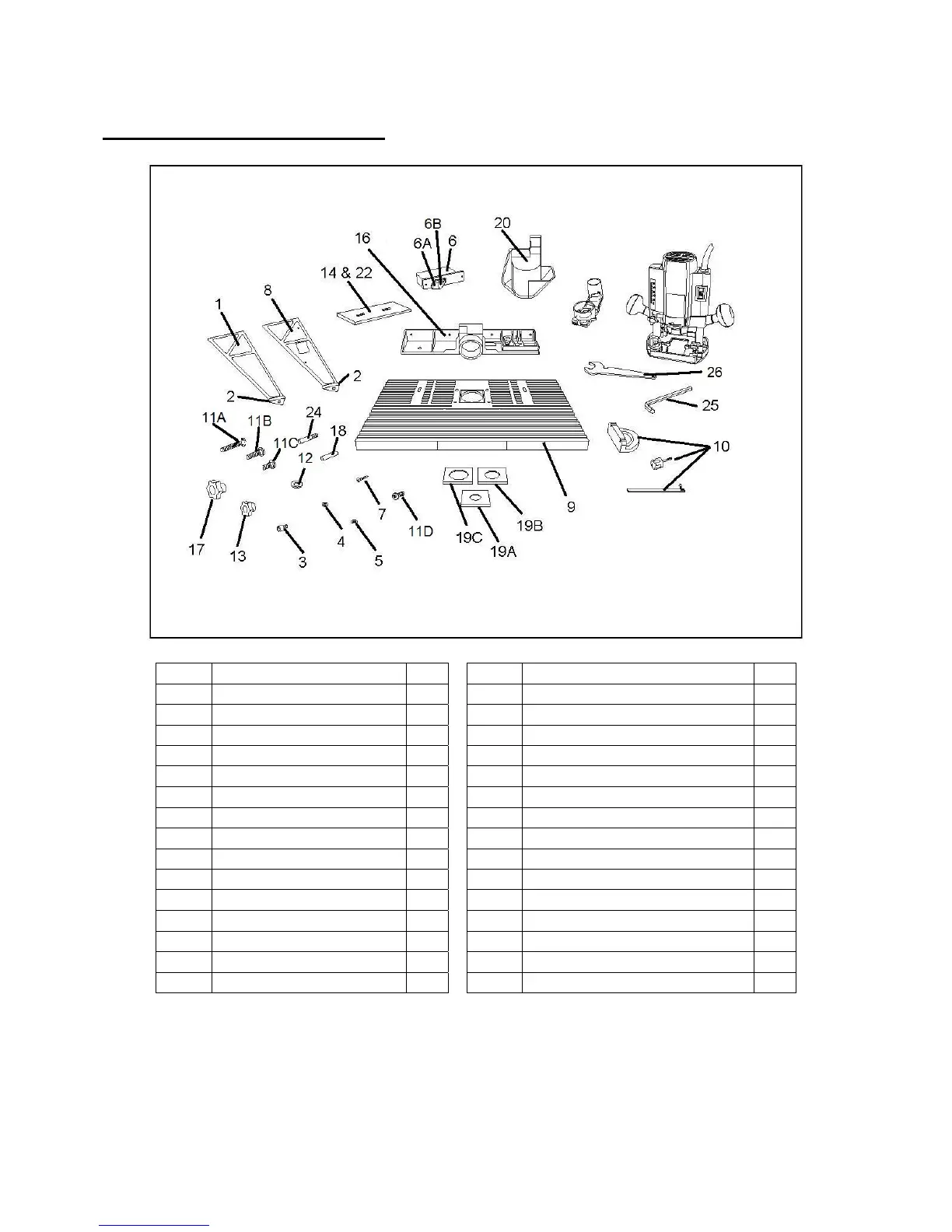

Exploded view & parts list
Item# Description Qty Item# Description Qty
1 Table leg A 3 11D Brass flat head screw 4
2 Rubber foot 4 12 Washer 6
3 Screw M6X12 16 13 Small lock knob 4
4 Spring washer 16 14 Fence panel (left) 1
5 Washer 16 16 Fence 1
6 Switch box 1 17 Large lock knob 2
6A ON/OFF switch 1 18 Guard pin 1
6B Safety lock 1 19A Table insert, 1-1/4" (32mm) 1
7 Screw ST4.2X9.5 2 19B Table insert, 1-7/8" (47mm) 1
8 Table leg B (switch on it) 1 19C Table insert, 2-1/8" (55mm) 1
9 Worktable 1 20 Guard 1
10 Miter gauge 1 22 Fence panel (right) 1
11A large bolt for fence 1 24 Starting pin 1
11B med bolt for fence 1 25 Hex wrench 5mm 1
11C Small bolt for fence panel 4 26 Router wrench 1
22
