MULTIPROP System
Instructions for Assembly and Use – Standard Configuration
A6 Accessories
Compression Brace Head
MP/SRU with Connector
MP/SRU
– The Compression Brace Head
MP/SRU (9) with Connector MP/SRU
(17) is used to brace inclined Beams
SRU on shoring towers. (Fig. A6.03)
– The Compression Brace Head can
also be used for the erection of
towers on inclined surfaces.
(Fig. A6.04)
– The Compression Brace Head
MP/SRU can usually be bolted
directly on the Beam SRU.
– The Connector MP/SRU serves as
compensatory element between
the Compression Brace Head and
the inclined beams independently
of the prop grid.
– Any desired incliniation and frame
size is possible by plugging holes
“A or B” for the Compression Brace
Head and holes 1, 2, 3 or 4 in the
beam for Connector MP/SRU.
(Fig. A6.03a + A6.03b)
Assembly of Compression Brace Head,
see A2.

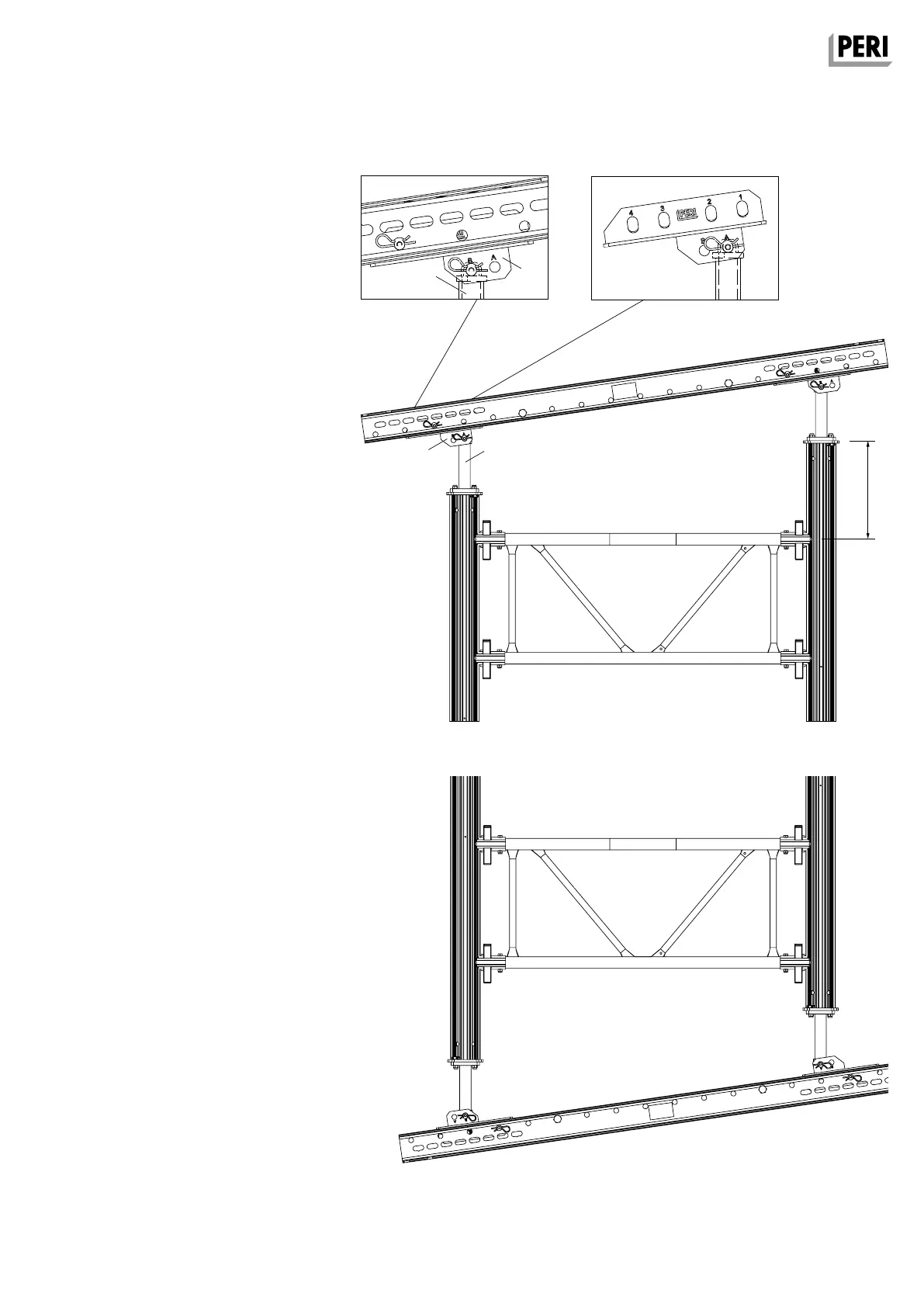

Fig. A6.03
Fig. A6.03a Fig. A6.03b
Fig. A6.04
