09931251D

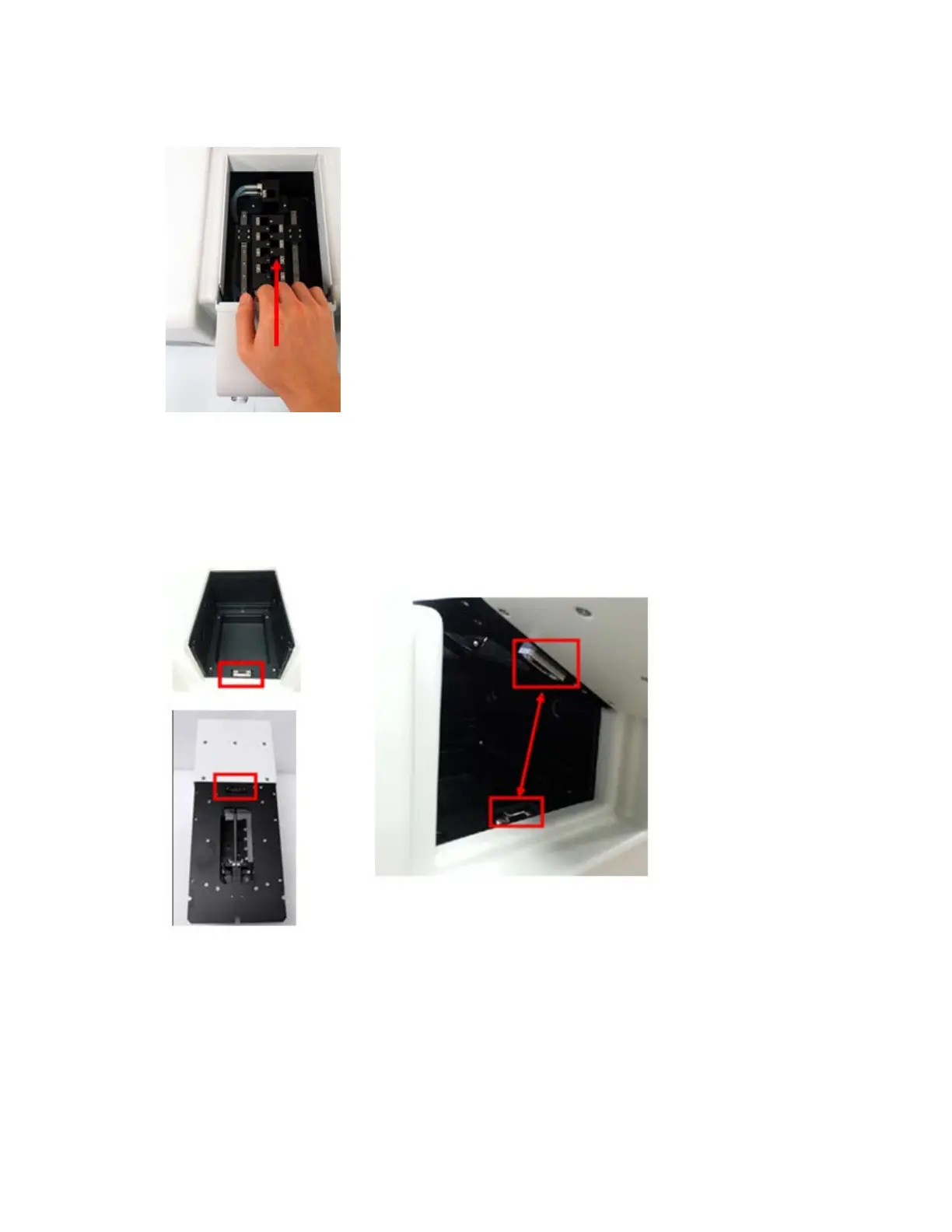

5. Insert the Water Jacketed 8-Position Multi-Cell Holder in the sample compartment.
Figure 7. Inserting the Water Jacketed 8-Position Multi-Cell Holder into the sample
compartment
6. Gently press the Water Jacketed 8-Position Multi-Cell Holder to connect the communication port
(male) under the bottom of the Water Jacketed 8-Position Multi-Cell Holder to the port (female) in
the sample compartment.
Figure 8. Connecting the communication ports
