PerkinElmer 200 Series User Manual

Introduction Introducing the Series 200 Peltier Column Oven 1-5
• key for Service use only.
• key resets solvent leak alarm.

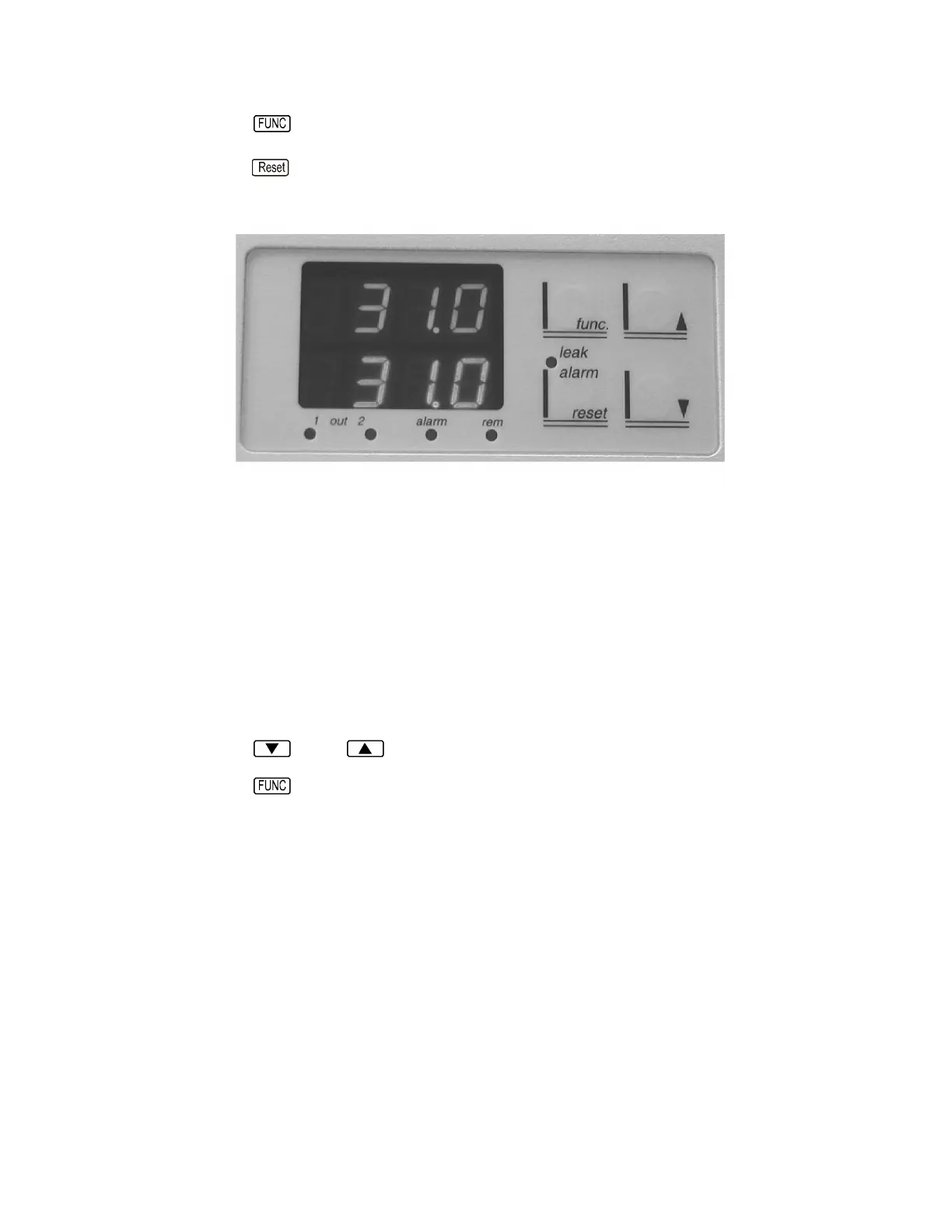

Figure 1-3. Peltier Column Oven controller.
About the Oven Controls, Indicators, and Connections
On the Front Panel
• Oven Controller: (see Figures 1-1 and 1-3). Used to increase and
decrease the oven temperature.
• and keys: Used to lower and raise, the oven temperature.
• key: For service use only.
• Alarm Reset Button – reset solvent leak alarm.
• Column Inlet/Outlet Fittings: (see Figures 1-2 and 2-4). Standard
fittings which accept 1/16-in. tubing for connection to the column inlet
and detector.
• Column Drain: Directs leaks away from the column chamber to a
fitting under the left-front panel of the oven (see Figure 1-2). Connect
one end of a length of 1/8-in. tubing and place the other end in a waste
vessel (see Figure 2-4).
