1204F-E44TTA Engine with Series
Turbochargers

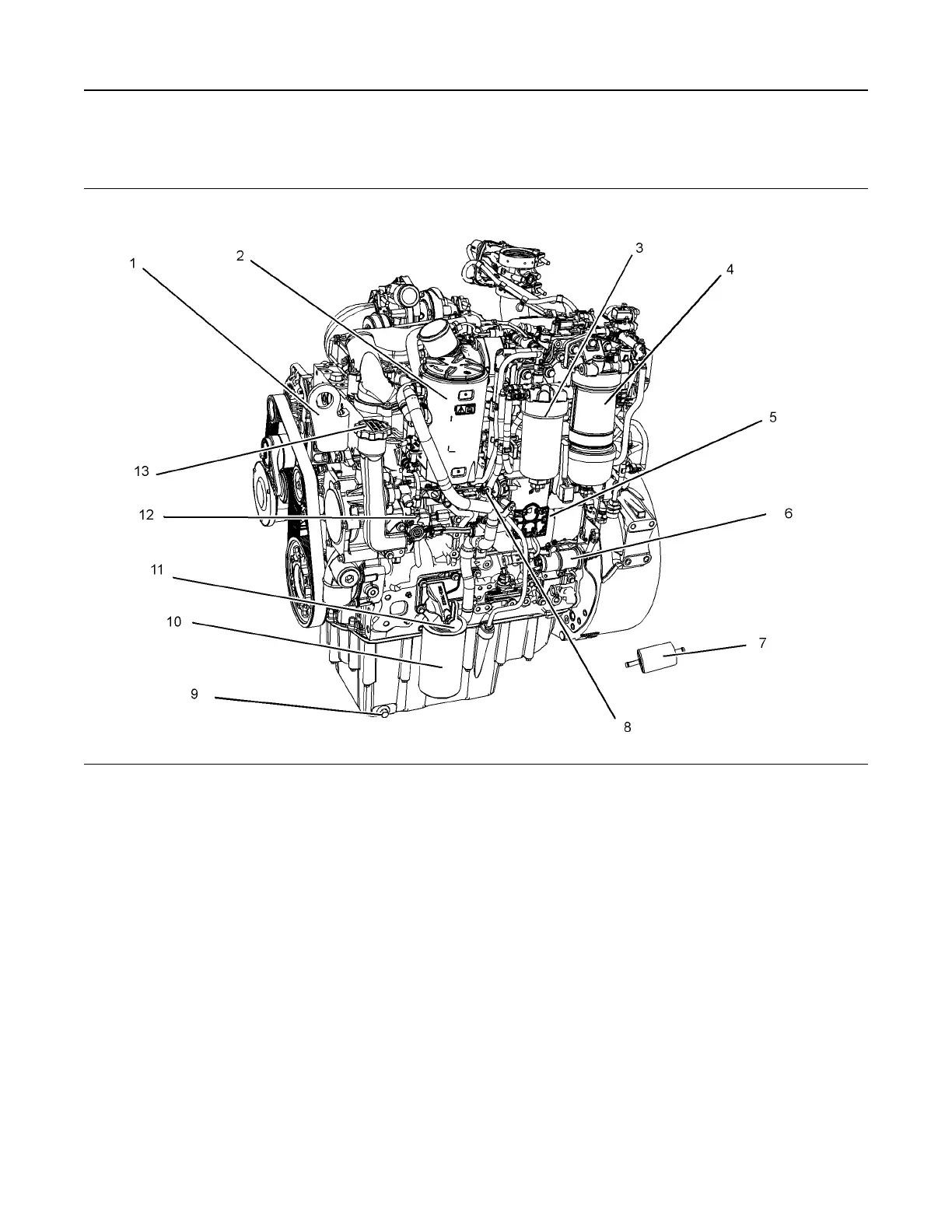

Illustration 1 g03404422
Typical example
(1) Front lifting eye
(2) Crankcase breather
(3) Secondary fuel filter
(4) Primary fuel filter
(5) Electronic Control Module (ECM)
(6) Fuel priming pump
(7) In line fuel filter
(8) Oil level gauge (dipstick)
(9) Oil drain plug
(10) Oil filter
(11) Oil sampling valve
(12) Fuel injection pump
(13) Oil filler
