i03578027
Gear Group (Front) - Time

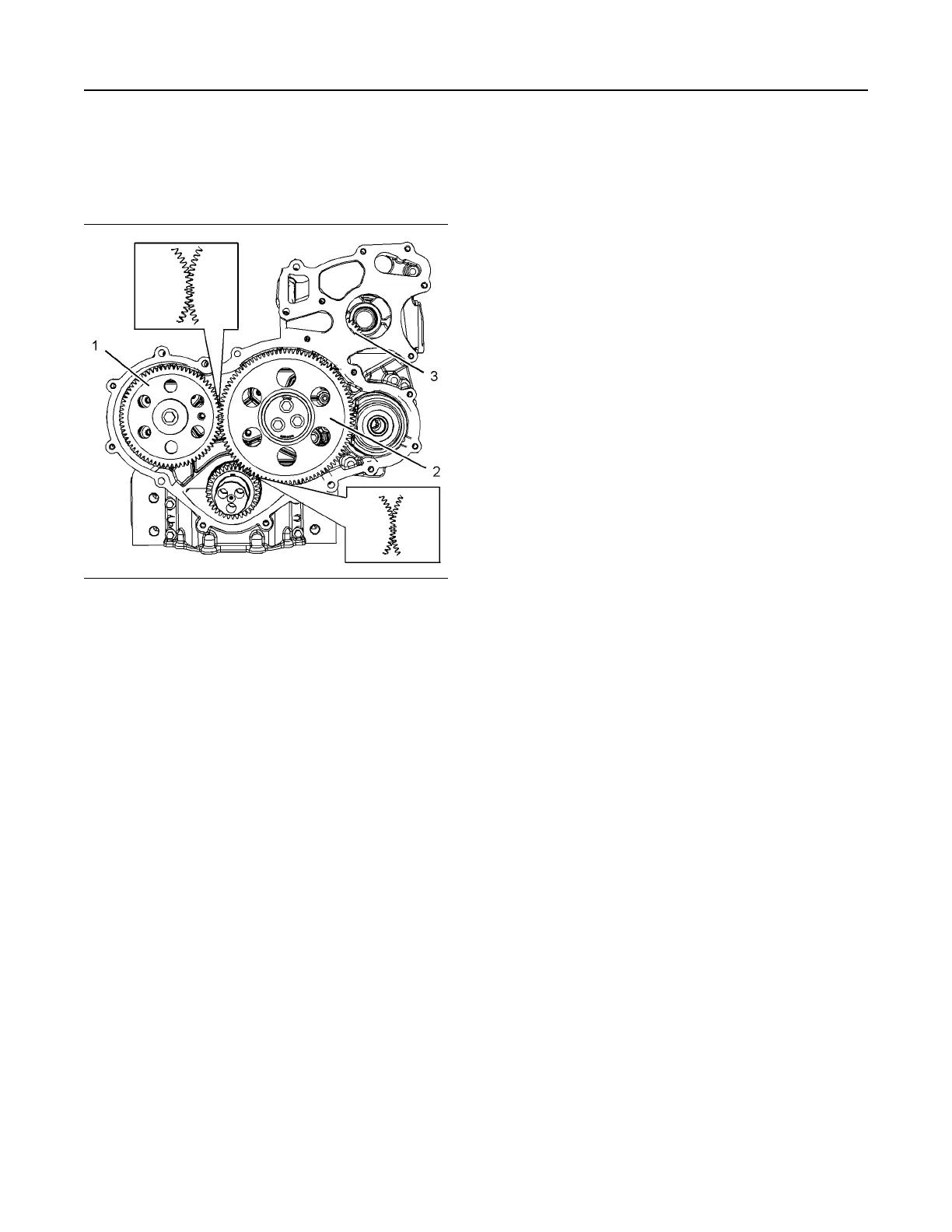

Illustration 75 g01907773
Typical example
(1) Camshaft gear
(2) Idler gear
(3) Fuel Injection Pump gear
1. Install the camshaft gear (1) onto the camshaft.
Refer to Disassembly and Assembly, “Camshaft
Gear - Remove and Install” for the correct
procedure.
2. Ensure that the crankshaft and the camshaft are
locked in the correct position. Refer to Systems
Operation, Testing and Adjusting, “Finding Top
Center Position for No. 1 Piston” for the correct
procedure. Ensure that the fuel injection pump is
locked in the correct position. Refer to
Disassembly and Assembly, “Fuel Injection Pump
- Remove” for the correct procedure.
3. Install the idler gear (2). Refer to Disassembly and
Assembly, “Idler Gear - Remove and Install” for the
correct procedure.
4. Install the fuel injection pump and gear assembly
(3). Refer to Disassembly and Assembly, “Fuel
Injection Pump - Install” for the correct procedure.
5. Make sure that the timing marks on the gears (1),
(2) and (3) are in alignment. If the timing marks are
not aligned, refer to Disassembly and Assembly,
“Gear Group (Front) - Remove and Install”.
86 UENR4490-01
Fuel System
