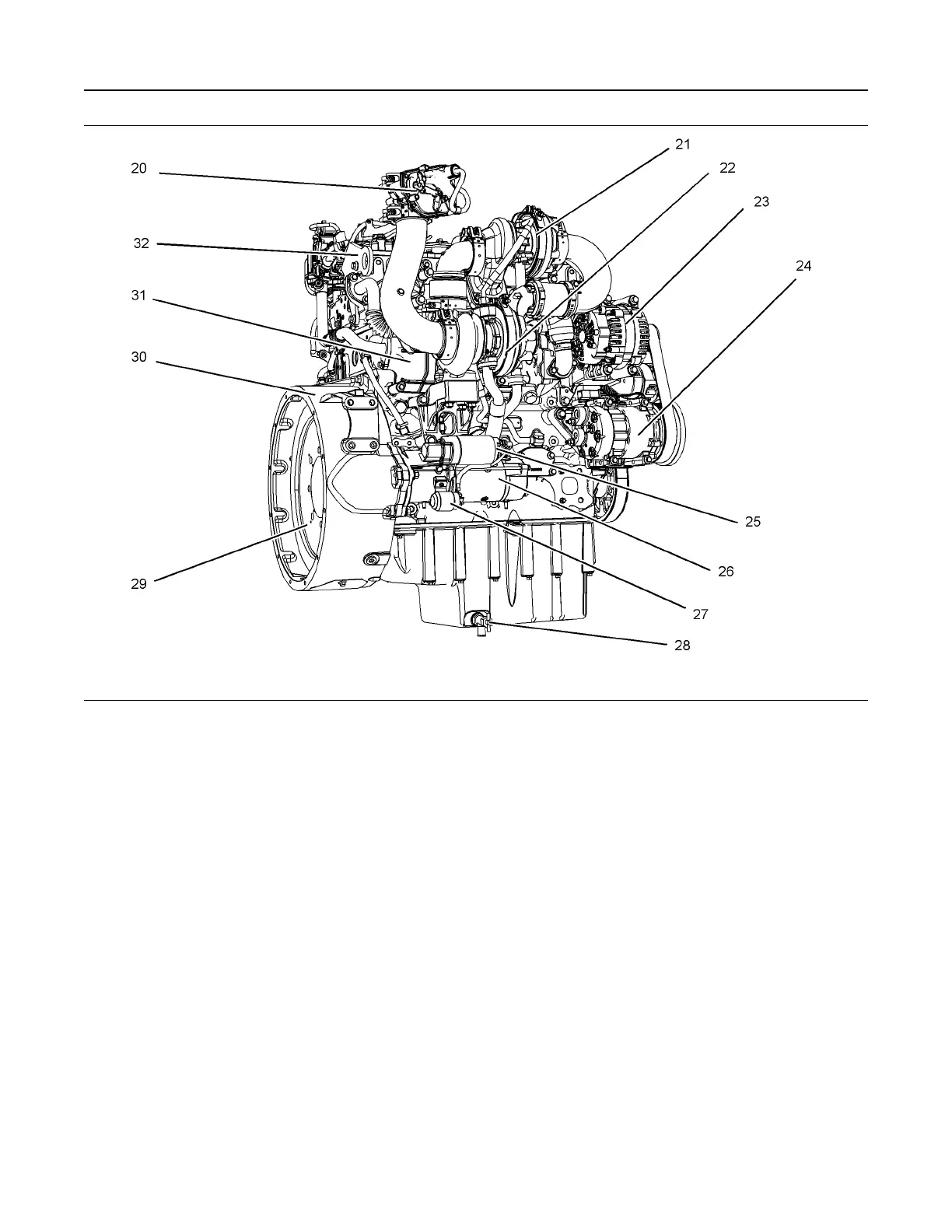

Illustration 3 g03404515
Typical example
(20) Back pressure valve
(21) High-pressure turbocharger
(22) Low-pressure turbocharger
(23) Alternator
(24) Refrigerant compressor
(25) Starter solenoid
(26) Starting motor
(27) Starter relay
(28) Oil drain tap
(29) Flywheel
(30) Flywheel housing
(31) Exhaust gas cooler (NRS)
(32) Rear lifting eye
UENR4490-01
7
General Information
