Power Supply for the Pressure
Sensors

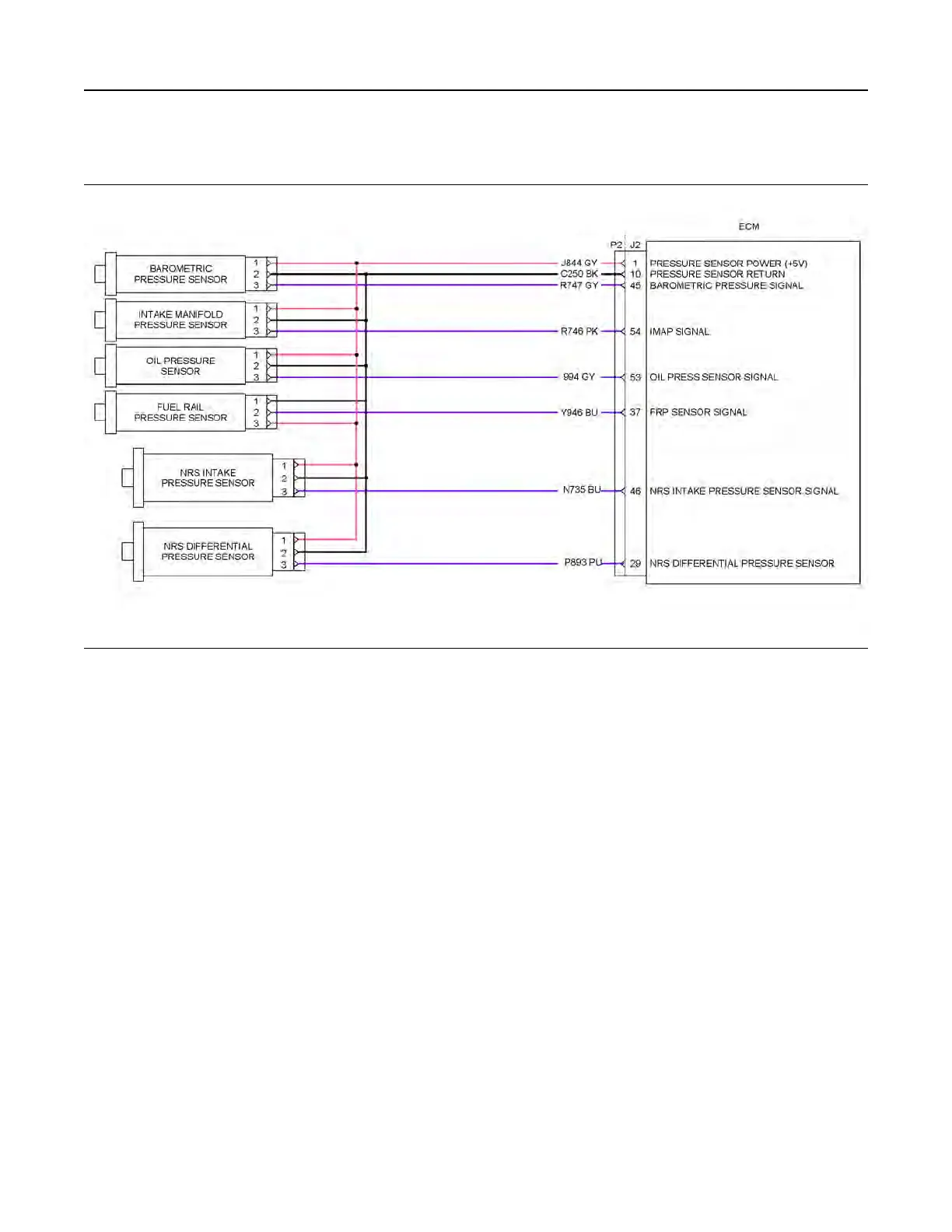

Illustration 65 g03710923
Schematic for the pressure sensors
The ECM supplies 5 VDC volts through the ECM
connector to each sensor. The power supply is
protected against short circuits. A short in a sensor or
a wiring harness will not damage the ECM.
UENR4490-01 71
