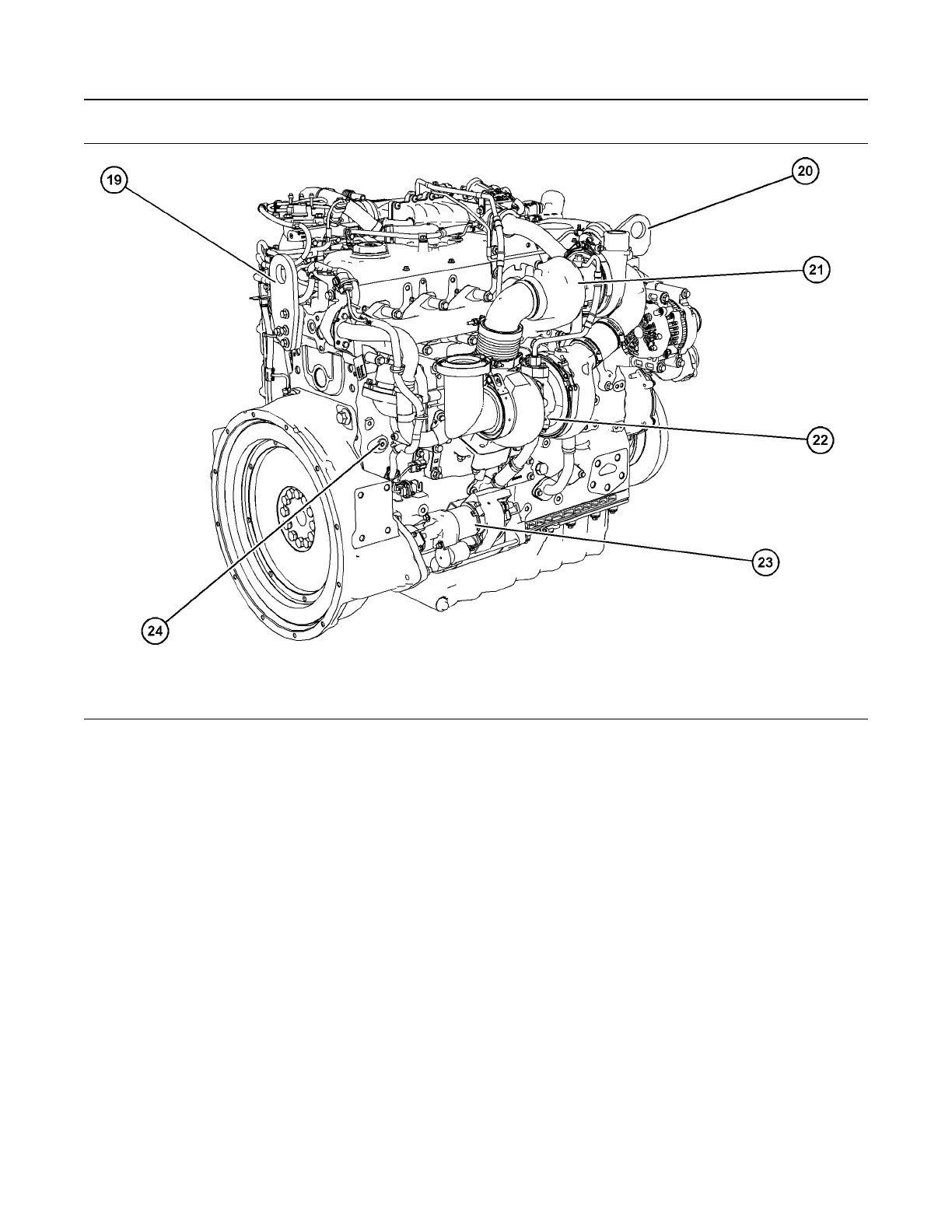

Illustration 21 g06276560
Typical example
(19) Rear lifting eye
(20) Front lifting eyes
(21) High-pressure turbocharger
(22) Low-pressure turbocharger
(23) Starting motor
(24) Cylinder block coolant drain plug
i07297201
Product Description
There are two variants of the Perkins industrial
engine.
• The 1206A-E70TTA with a prefix of BP.
• The 1206A-E70TTA with a prefix of BQ.
The engines have the same characteristics:
• In-line six cylinder
• Four stroke cycle
• Four valves per-cylinder
• Series turbocharged
• Air charge cooler
Engine Specifications
Note: The front end of the engine is opposite the
flywheel end of the engine. The left and the right
sides of the engine are determined from the flywheel
end. The number 1 cylinder is the front cylinder.
M0090743 25
Product Information Section
Product Description
