(3) Manifold air temperature sensor
(4) Manifold air pressure sensor
(5) Electronic control module
(6) Electric fuel priming pump
(7) Primary speed/timing sensor
(crankshaft)
(8) Oil pressure sensor
(9) Water in fuel switch
(10) Fuel suction control valve
(11) Fuel temperature sensor

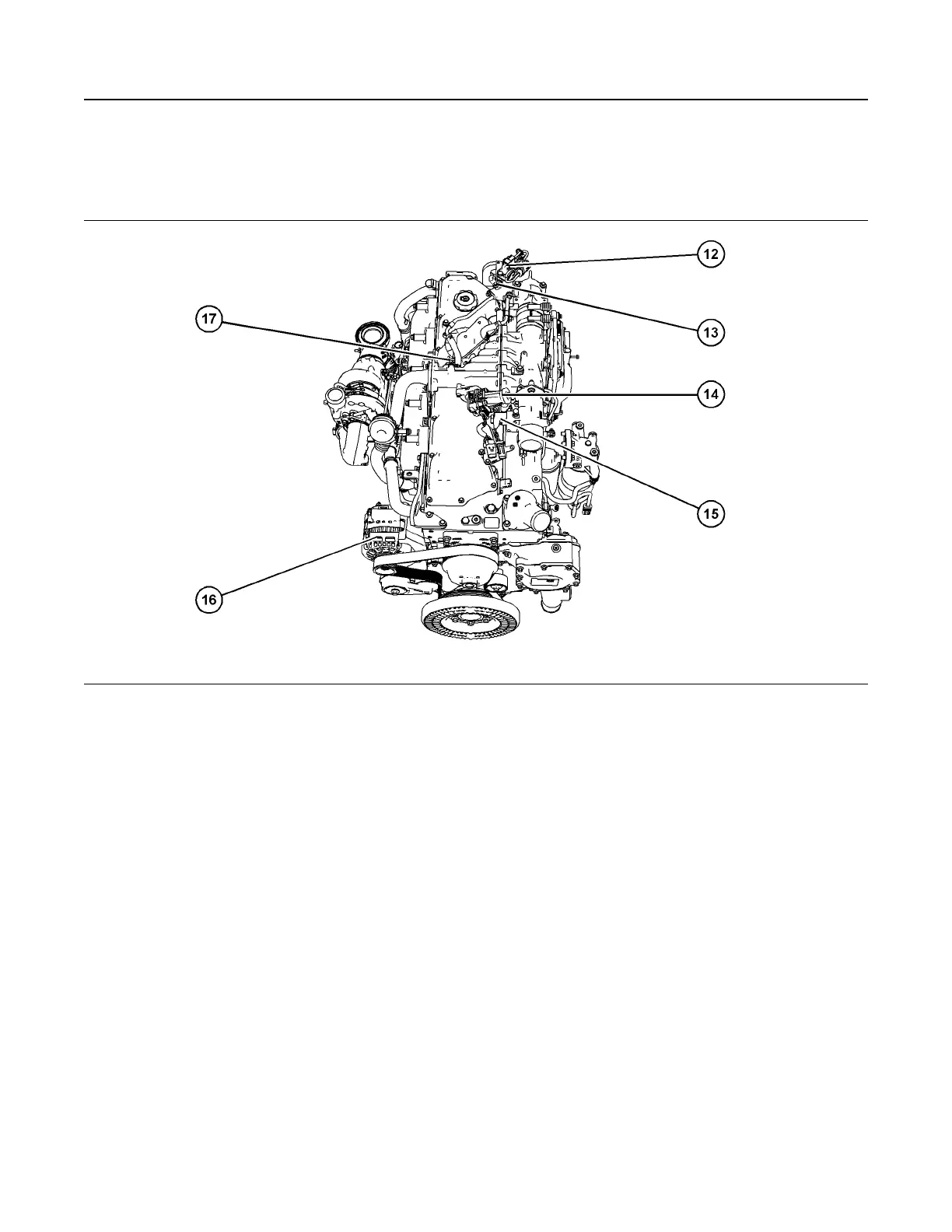

Illustration 28 g06277422
Typical example
(12) NOx Reduction System (NRS) mixer
differential pressure sensor
(13) NRS mixer pressure sensor
(14) NRS valve
(15) Waste gate regulator
(16) Alternator
(17) NRS temperature sender
M0090743 37
Operation Section
Sensors and Electrical Components
