5. Install a new filter element into the breather body
(3). Ensure the correct position of the element,
refer to illustration 67 . Align position (A) on the top
cap to position (B) on the filter element.

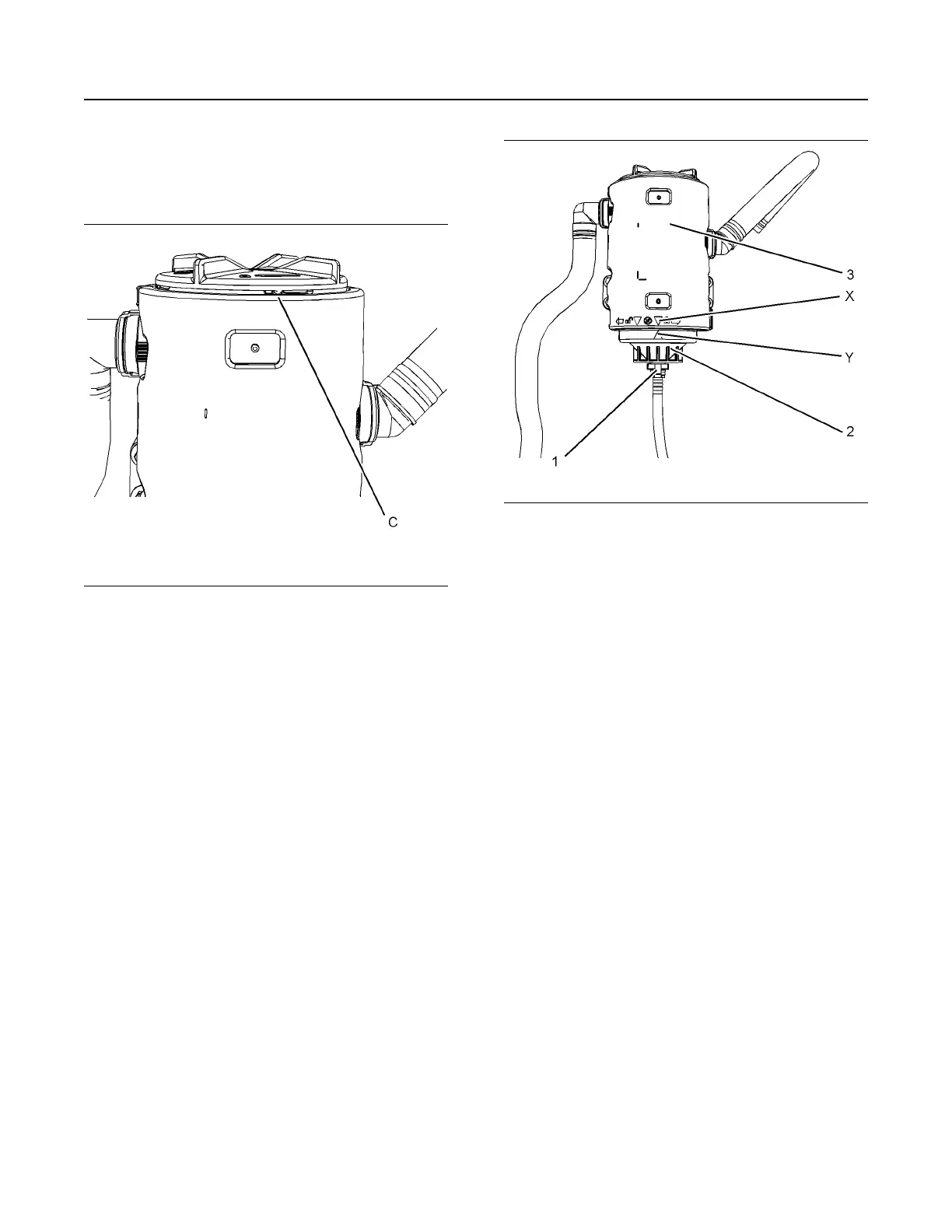

Illustration 68 g02346577
Typical example
6. Install the top cap (1). Rotate the top cap by hand
clockwise until the top cap locks into the locked
position (C) on the breather body.
7. Remove the container.
Bottom Service
Ensure that dirt cannot enter the breather assembly.
Illustration 69 g02346498
Typical example
(X) Alignment mark
(Y) Alignment mark
1. Ensure that the outside body of the breather
assembly is clean and free from damage. Place a
container under the breather.
2. Remove the tube connection (1). Ensure that dirt
cannot enter the tube connection. Note the
position of the alignment marks (X and Y). Rotate
the bottom cap (2) counterclockwise to release the
cap and the filter element (4) from the breather
body (3).
110
SEBU8601-04
Maintenance Section
Type 1
