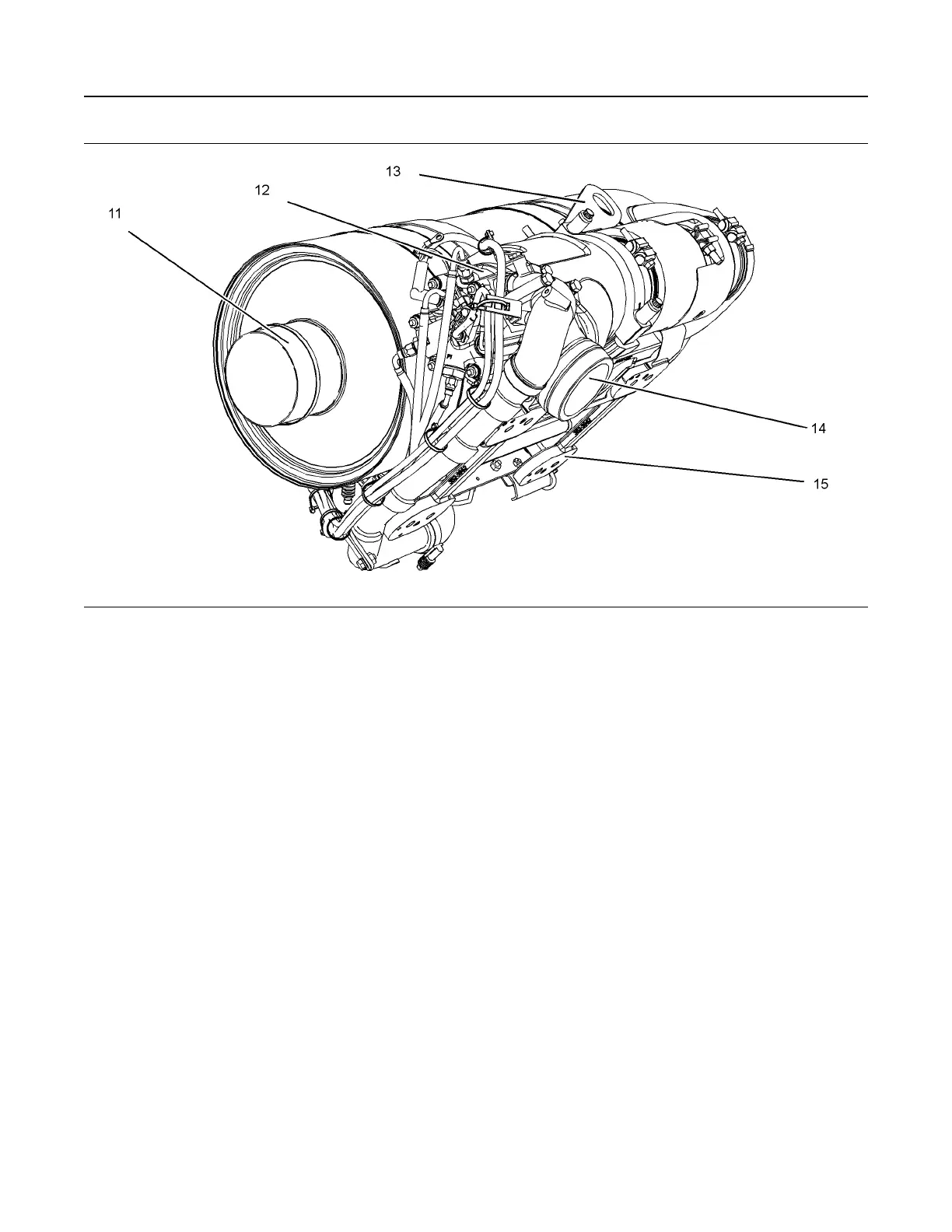

Illustration 21 g02162641
(11) Outlet to exhaust system
(12) Aftertreatment regeneration device
(13) Lifting eye
(14) Exhaust Inlet
(15) Mounting cradle
Fuel Pump for Engine Aftertreatment
System
Note: The fuel for the engine aftertreatment system
is supplied by a designated fuel pump. The location
of this pump can change depending on the
application.
SEBU8601-04
25
Product Information Section
Model View Illustrations
