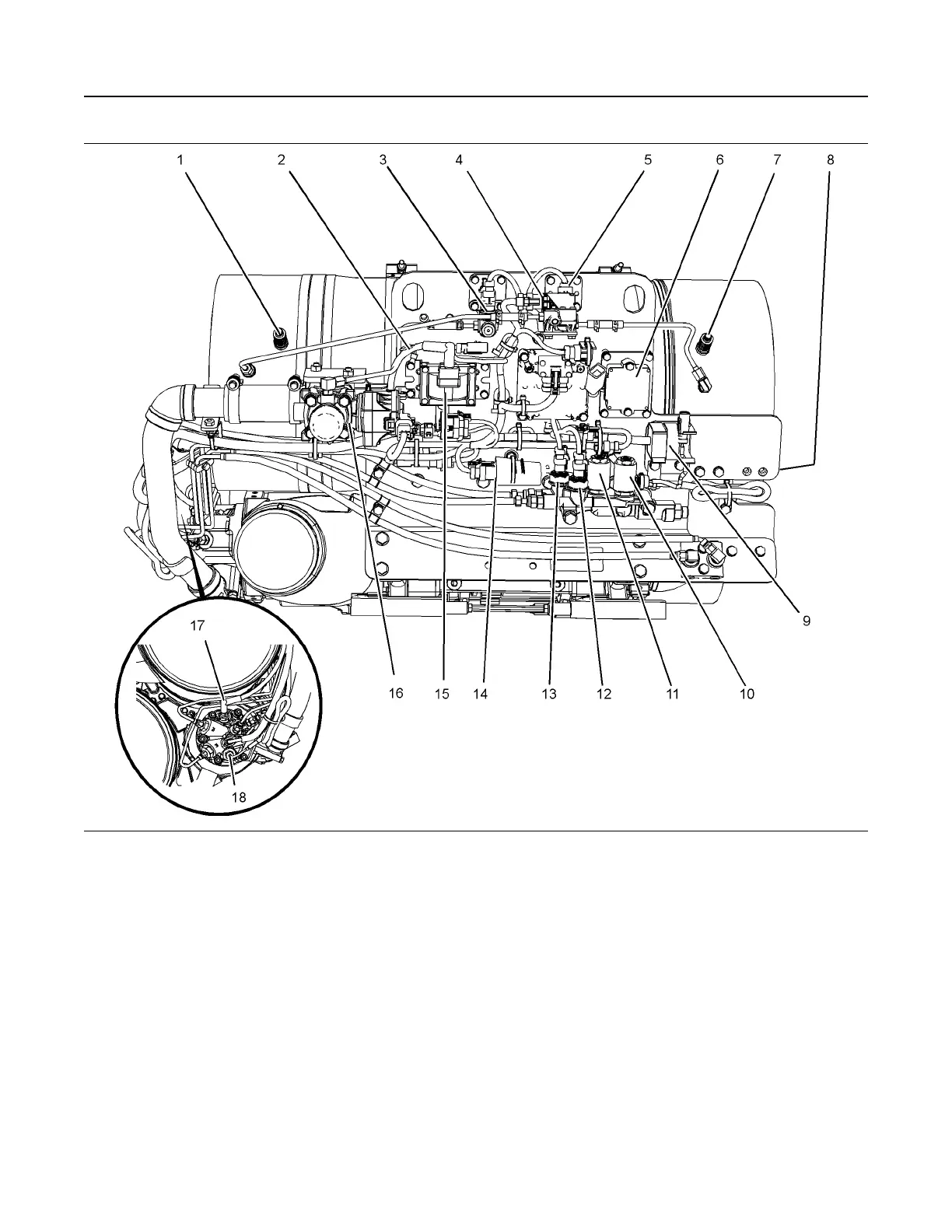

Illustration 33 g02313693
Typical example
(1) Soot sensor connection
(2) Spark plug lead
(3) ARD air pressure sensor
(4) DOC pressure sensor
(5) Pressure differential sensor
(6) Relay
(7) Soot sensor connection
(8) DOC Temperature sensor (not shown)
(9) Harness connector
(10) Main fuel valve (If equipped)
(11) Pilot fuel valve
(12) Fuel pressure sensor (if equipped)
(13) Fuel pressure sensor (pilot)
(14) Aftertreatment device ID
(15) Coil for spark plug
(16) ARD air control valve
(17) Location of spark plug
(18) ARD exhaust gas temperature sensor
40
SEBU8601-04
Operation Section
Aftertreatment
