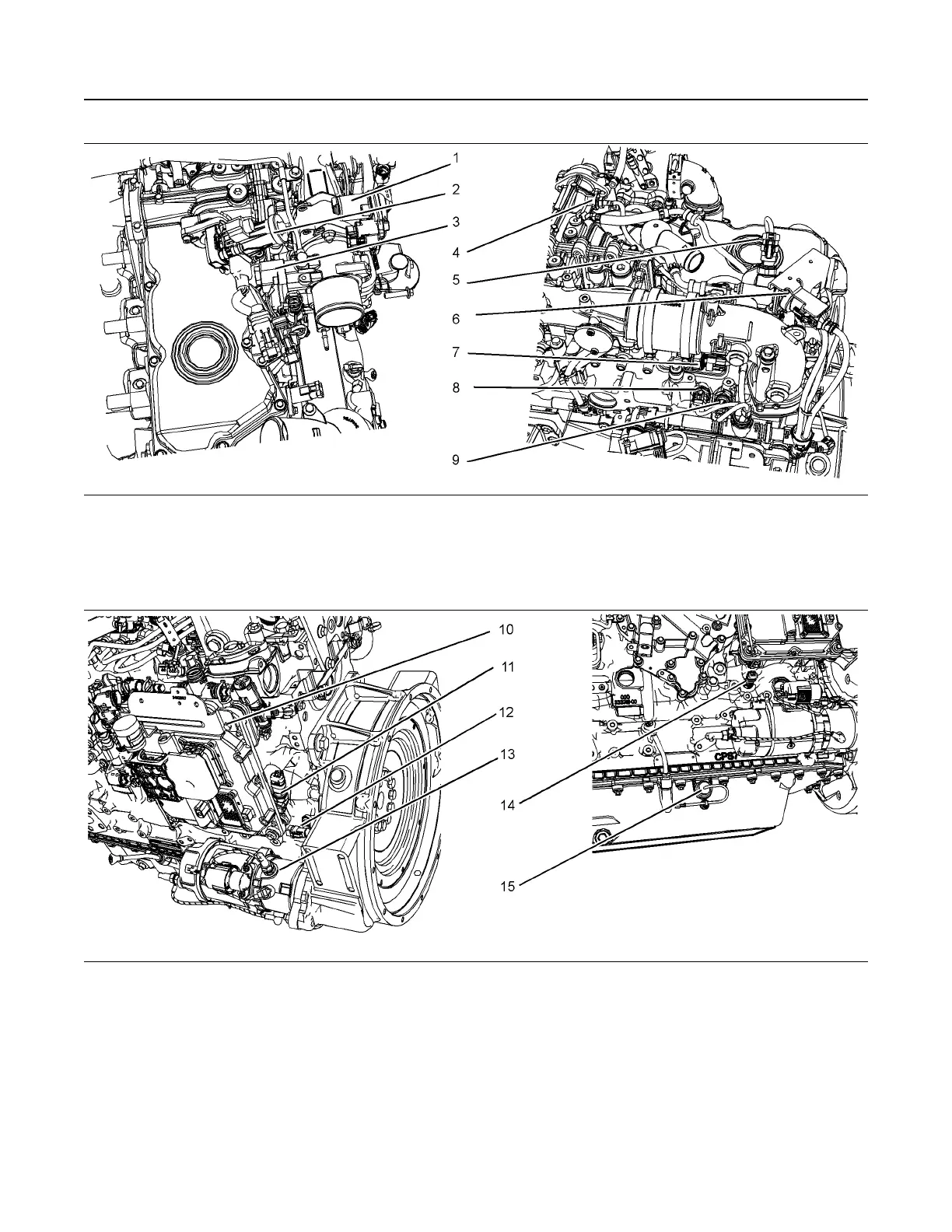

Illustration 36 g02151173
(1) Engine Intake Throttle Valve
(2) Wastegate Regulator
(3) Control Valve for the NRS
(4) Temperature Sensor for the NRS
(5) Intake Pressure Sensor for the NRS
(6) Differential Pressure Sensor for the NRS
(7) Fuel Pressure Sensor (Fuel Rail
Pressure Sensor)
(8) Intake Manifold Air Temperature Sensor
(9) Intake Manifold Pressure Sensor
Illustration 37 g02151174
(10) Electronic Control Module (ECM)
(11) Atmospheric Pressure Sensor
(Barometric Pressure Sensor)
(12) Primary Speed/Timing Sensor
(13) Starting Motor
(14) Oil Pressure Sensor
(15) Oil Level Switch (if Equipped)
The oil level switch (15) will only operate with the
application on level ground and the power in the ON
position. The engine must be at zero RPM. A coolant
level switch can be installed, this switch only
operates at key on, and the application must be on
level ground.
