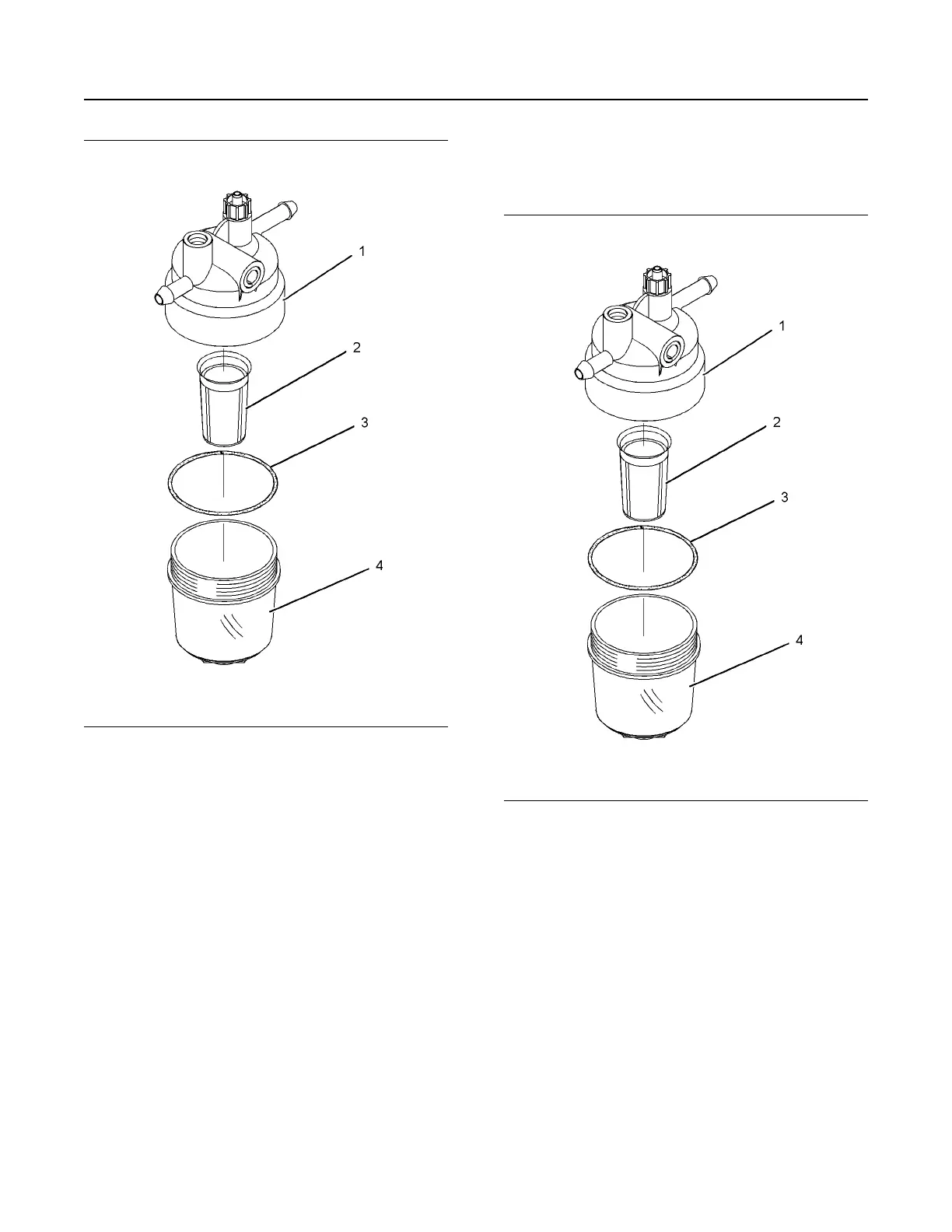

Illustration 74 g03381282
Typical example
3. Remove the filter bowl (4) from the fuel filter base
(1).
4. Remove the O-ring seal (3). Discard the O-ring
seal.
5. Remove the filter element (2) from the fuel filter
base (1). Discard the filter element (2).
6. Clean the filter bowl (4).
Install the Element
Illustration 75 g03381282
Typical example
1. Install a new filter element (2) to the fuel filter base
(1).
2. Lubricate the O ring seal (3) with clean engine oil.
Do NOT fill the bowl with fuel before the assembly
is installed.
3. Install the filter bowl (4) to the fuel filter base (1).
Tighten the filter bowl (4) by hand.
