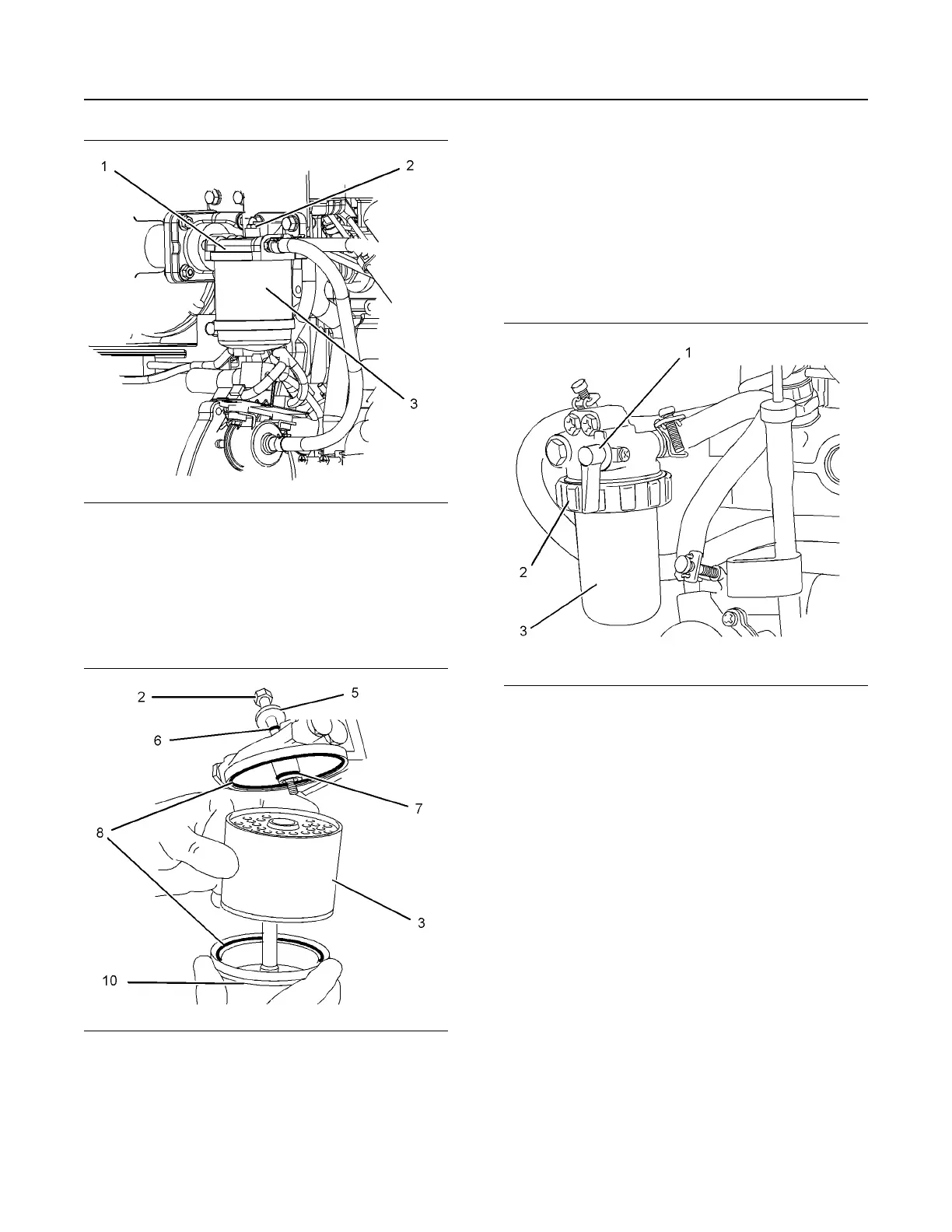

Illustration 77 g03317866
Typical example
2. Clean the outside of the fuel filter assembly (1).
3. Remove setscrew (2).
4. Remove the canister (3). Ensure that any fluid is
drained into a suitable container.
Illustration 78 g02710378
Typical example
5. Assemble the following items: seals (8), seal (7),
canister (3) and bowl (10). Place washer (5) and
seal (6) on setscrew (2).
6. Fasten the assembly to the fuel filter base with
setscrew (2).
The fuel system will need to be primed after the new
filter is installed. Refer to this Operation and
Maintenance Manual, “Fuel System - Prime”.
Fuel Filter with Element
1. Close the fuel supply valve (1).
Illustration 79 g01334893
Typical example
2. Clean the outside of the fuel filter assembly.
3. Loosen the locking ring (2).
4. Remove the casing (3) for the filter and the
element. Ensure that any fluid is drained into a
suitable container.
98
SEBU9064-08
Maintenance Section
Fuel System Secondary Filter - Replace
