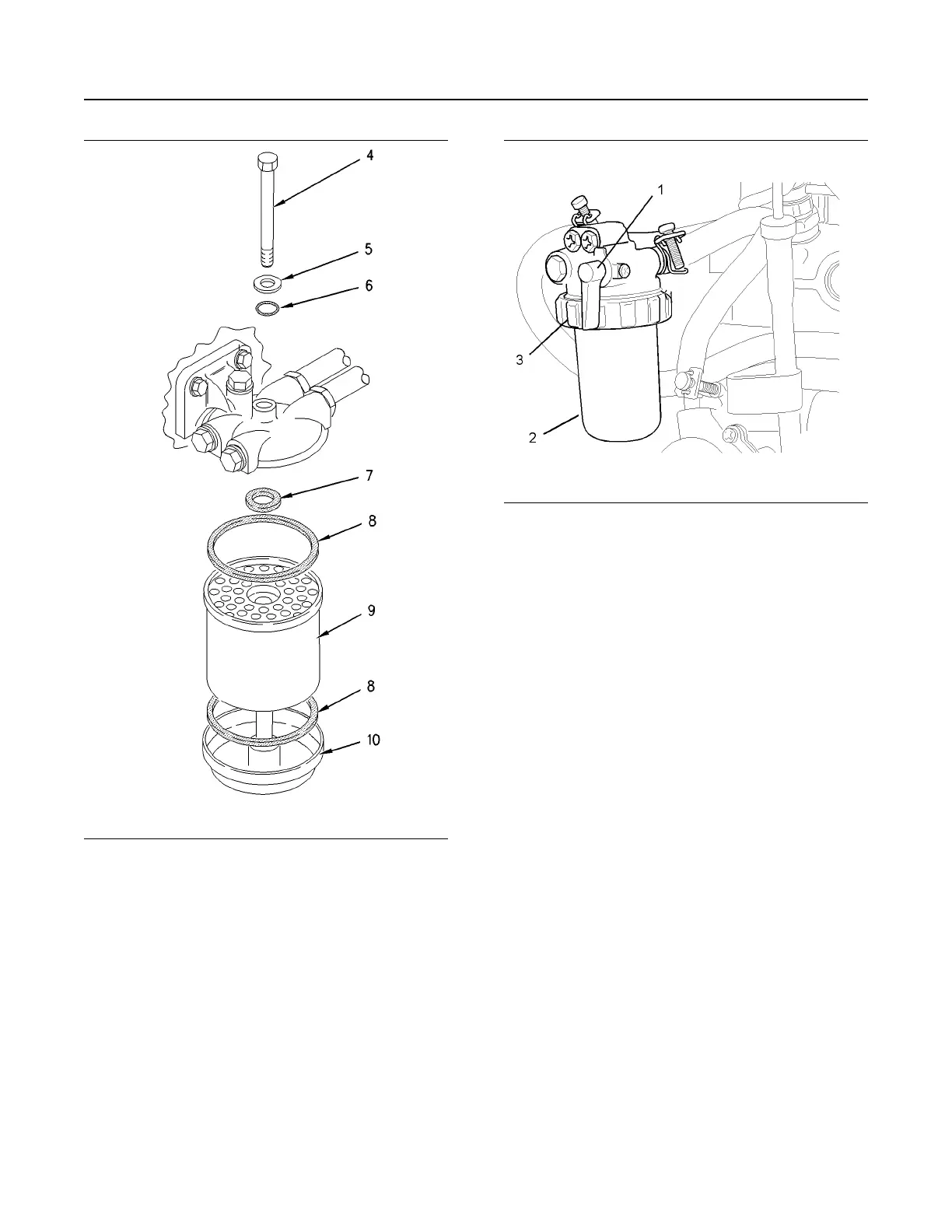

Illustration 54 g00917937
6. Assemble the following items: seals (8), seal (7),
canister (9) and base (10). Place washer (5) and
seal (6) on setscrew (4).
7. Fasten the assembly to the fuel filter base with
setscrew (4).
The fuel system will need to be primed after the new
filter is installed. Refer to this Operation and
Maintenance Manual, “Fuel System - Prime”.
Fuel Filter With Element
1. Close the fuel supply valve (1).
Illustration 55 g01122130
2. Clean the outside of the fuel filter assembly.
3. Loosen the locking ring (3).
4. Remove the casing for the filter (2) and the
element.
SEBU7992-05
75
Maintenance Section
Fuel System Filter - Replace
