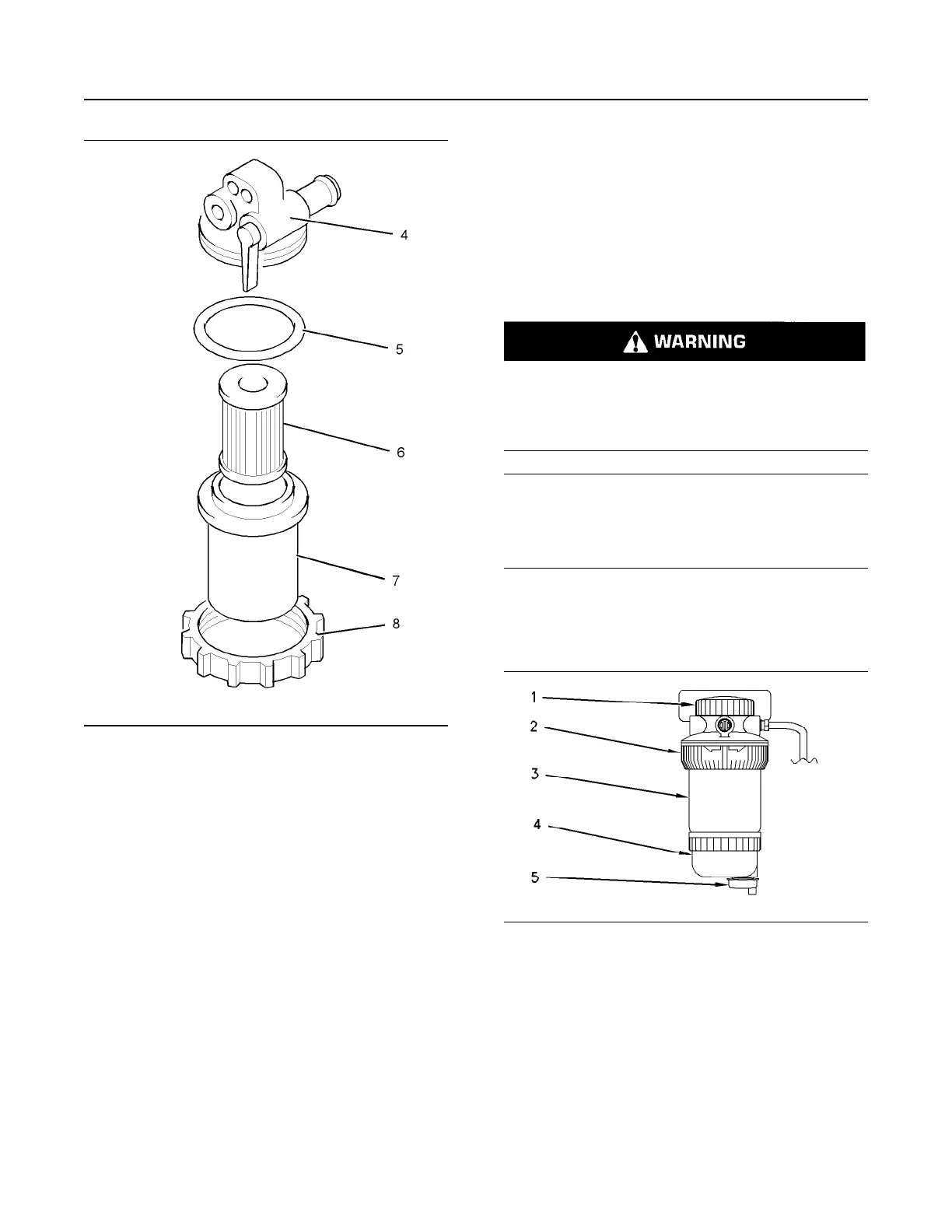

Illustration 56 g01122131
5. Assemble the following items: seal (5), filter
element (6) and casing (7).
6. Install the assembled items to the filter head (4).
7. Install the locking ring (8) to the filter head. Rotate
the locking ring in order to lock the assembly.
The fuel system will need to be primed after the new
filter is installed. Refer to this Operation and
Maintenance Manual, “Fuel System - Prime”.
i02177959
Fuel System Primary Filter/
Water Separator - Drain
Fuel leaked or spilled onto hot surfaces or electri-
cal components can cause a fire. To help prevent
possible injury, turn the start switch off when
changing fuel filters or water separator elements.
Clean up fuel spills immediately.
NOTICE
The water separator is not a filter. The water separa-
tor separates water from the fuel. The engine should
never be allowed to run with the water separator
more than half full. Engine damage may result.
The fuel filter/water separator (if equipped) is not
usually supplied by Perkins. The following text
describes a typical fuel filter/water separator. Refer to
the OEM information for further information on the
fuel filter/water separator.
Illustration 57 g00741109
(1) Cap
(2) Locking ring
(3) Element
(4) Water separator bowl
(5) Drain
1. Open drain (5). Catch the draining water in a
suitable container. Dispose of the drained water
correctly.
2. Close drain (5).
76
SEBU7992-05
Maintenance Section
Fuel System Primary Filter/Water Separator - Drain
