i04170049
Gear Group (Front) - Time

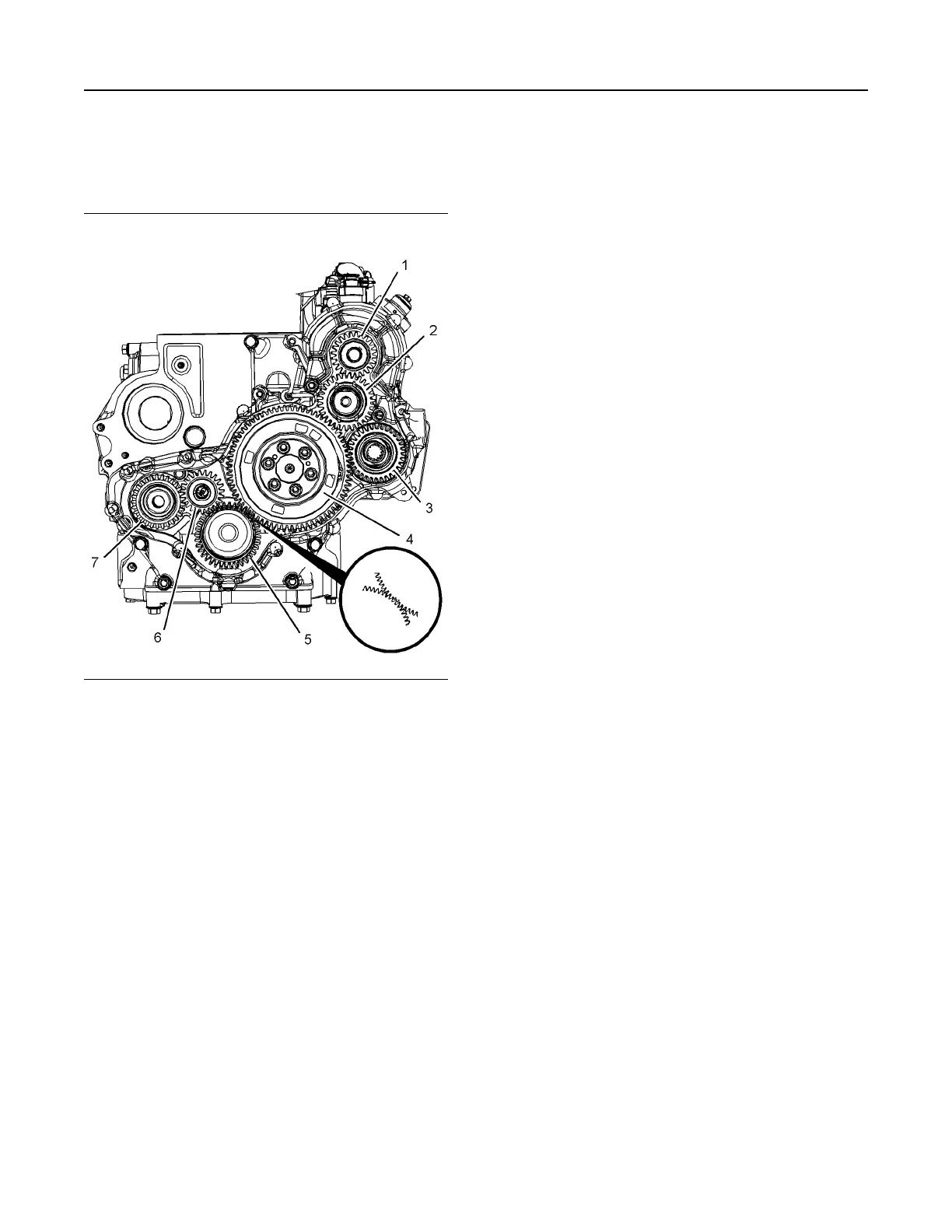

Illustration 52 g02859779
Typical example
(3) Accessory drive gear (if equipped)
(5) Crankshaft gear
(6) Oil pump idler gear
(7) Oil pump gear
1. Install the camshaft gear (4) onto the camshaft.
Refer to Disassembly and Assembly, “Camshaft
Gear - Remove and Install” for the correct
procedure.
2. Ensure that the crankshaft and the camshaft are
locked in the correct position. Ensure that the fuel
injection pump is in the correct position. Refer to
Disassembly and Assembly, “Fuel Injection Pump -
Remove” for the correct procedure.
3. Install the idler gear (2). Refer to Disassembly and
Assembly, “Idler Gear - Remove and Install” for the
correct procedure.
4. Install the fuel injection pump and gear assembly
(1). Refer to Disassembly and Assembly for the
correct procedure.
5. Make sure that the timing marks on the gears are in
alignment. If the timing marks are not aligned, refer
to Disassembly and Assembly, “Gear Group
(Front) - Remove and Install”.
58 UENR0623
Fuel System
