904D-E28T Industrial Engine Views

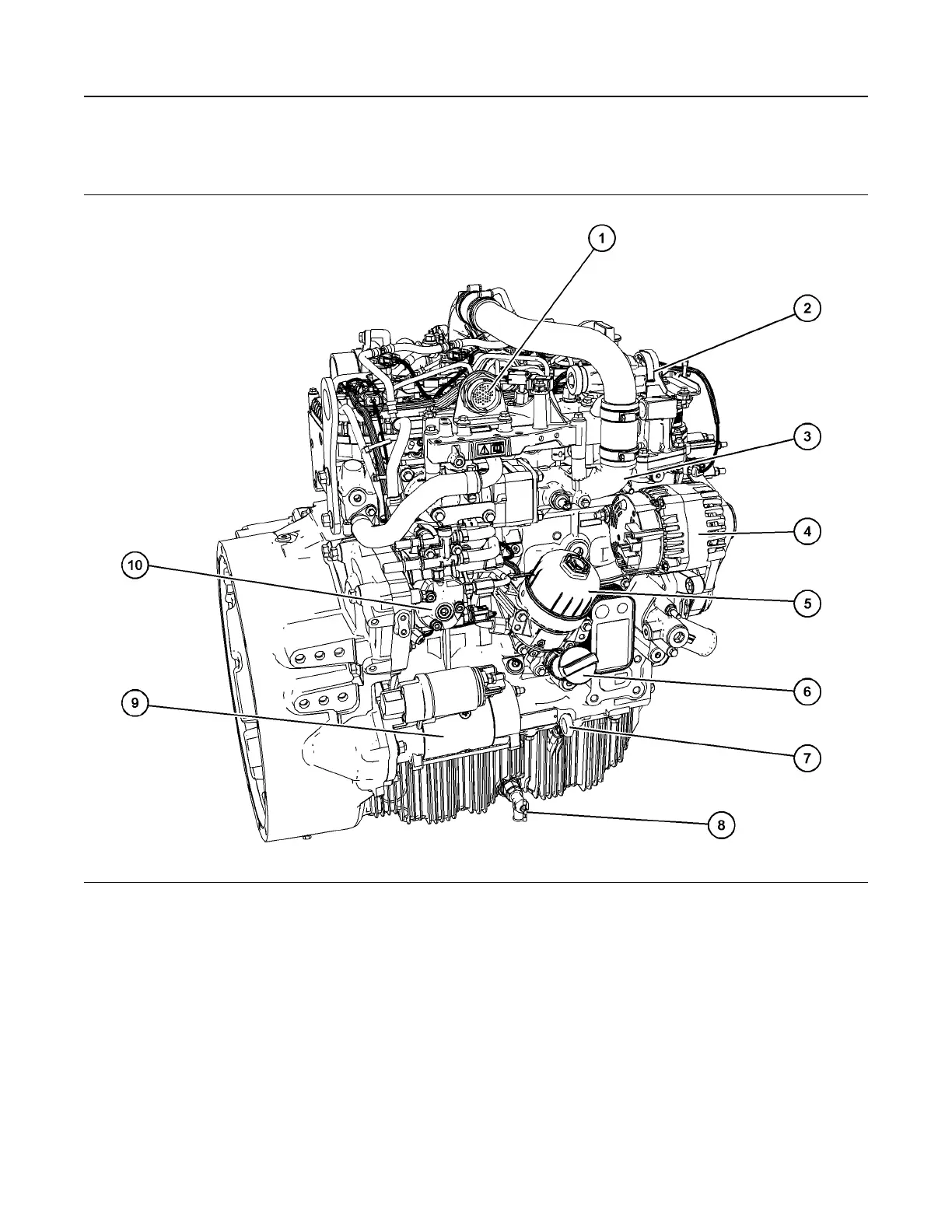

Illustration 17 g06561996
Typical example
(1) Engine harness interface
(2) NOx Reduction System (NRS) valve
(3) Air intake from air charge cooler
(4) Alternator
(5) Oil filter assembly
(6) Oil filler (lower)
(7) Oil gauge (Dipstick)
(8) Oil drain tap
(9) Starting motor
(10) High-pressure fuel pump
24 M0108133-04
Product Information Section
Model View Illustrations
