Perkins M185C - Page 34

Chapter 5 TPD1317e
Page 30
À Á
To keel
cooler
From keel
cooler
From cylinder
block

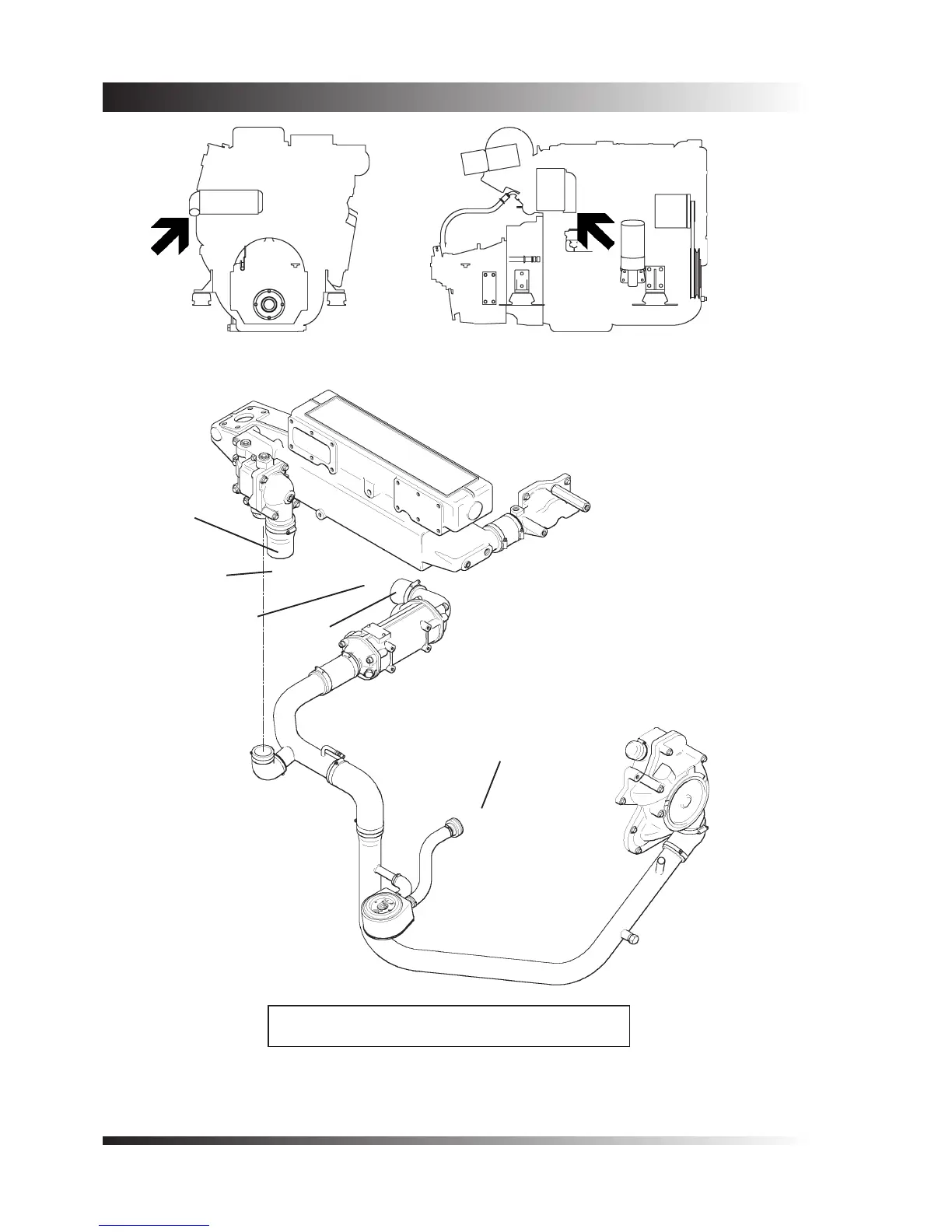

Figure 4 - Connections for keel coolers (M115T, M92)
ß
À
Á
ß
ß
À Engine circuit inlet for 45mm (1.75”) diameter hose
Á Engine circuit outlet for 45mm (1.75”) diameter hose
