TPD1317e Chapter 7
Page 41

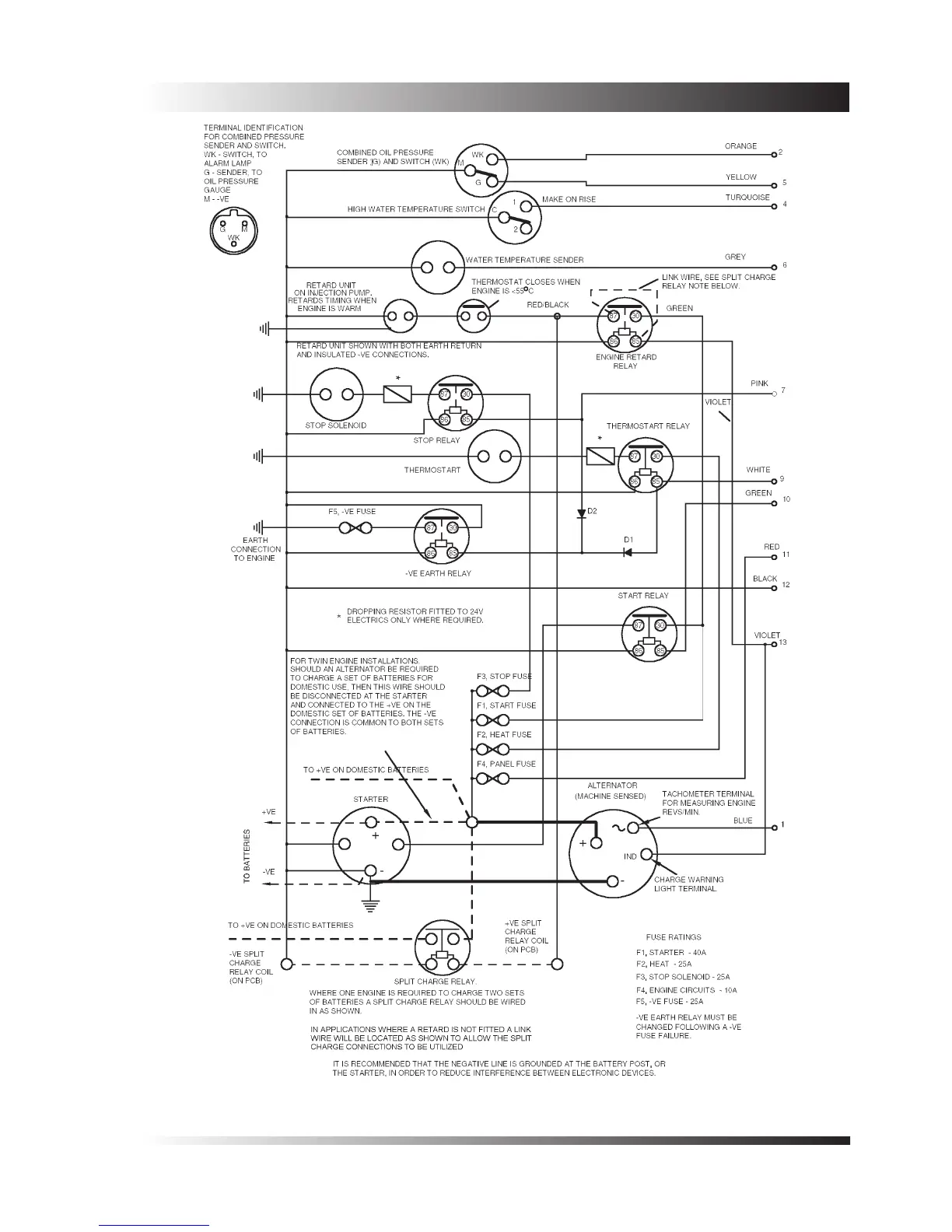

Figure 6 - All 6 cylinder models - insulated and earth return - circuit diagram
Information derived from drawing number 00-1020-3
