Chapter 7 TPD1317e
Page 46
MALE
MULTIWAY
CONNECTOR
FEMALE
MULTIWAY
CONNECTOR

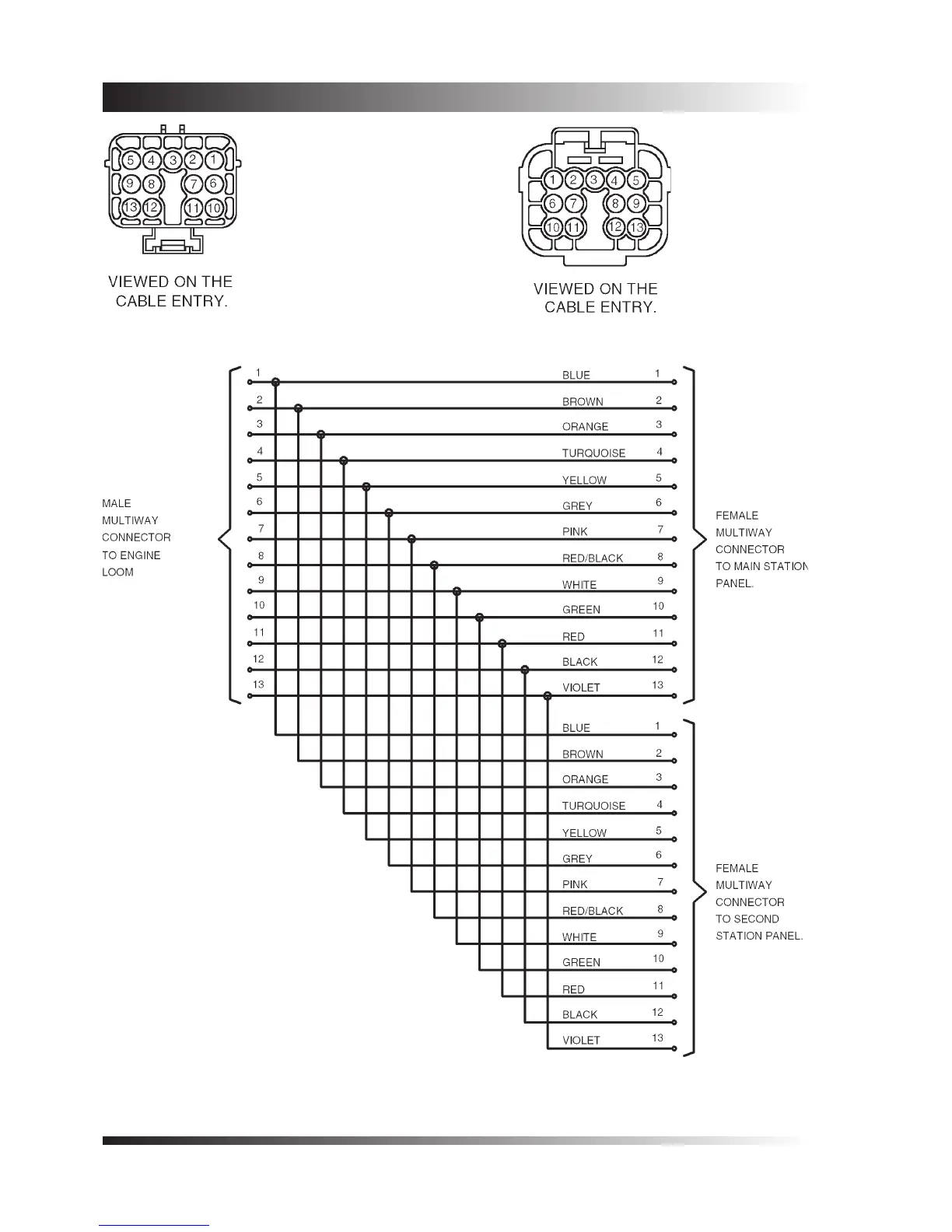

Figure 12 - Schematic of ‘Y’ harness part number 34621
Information derived from drawing number 98-1044-1
