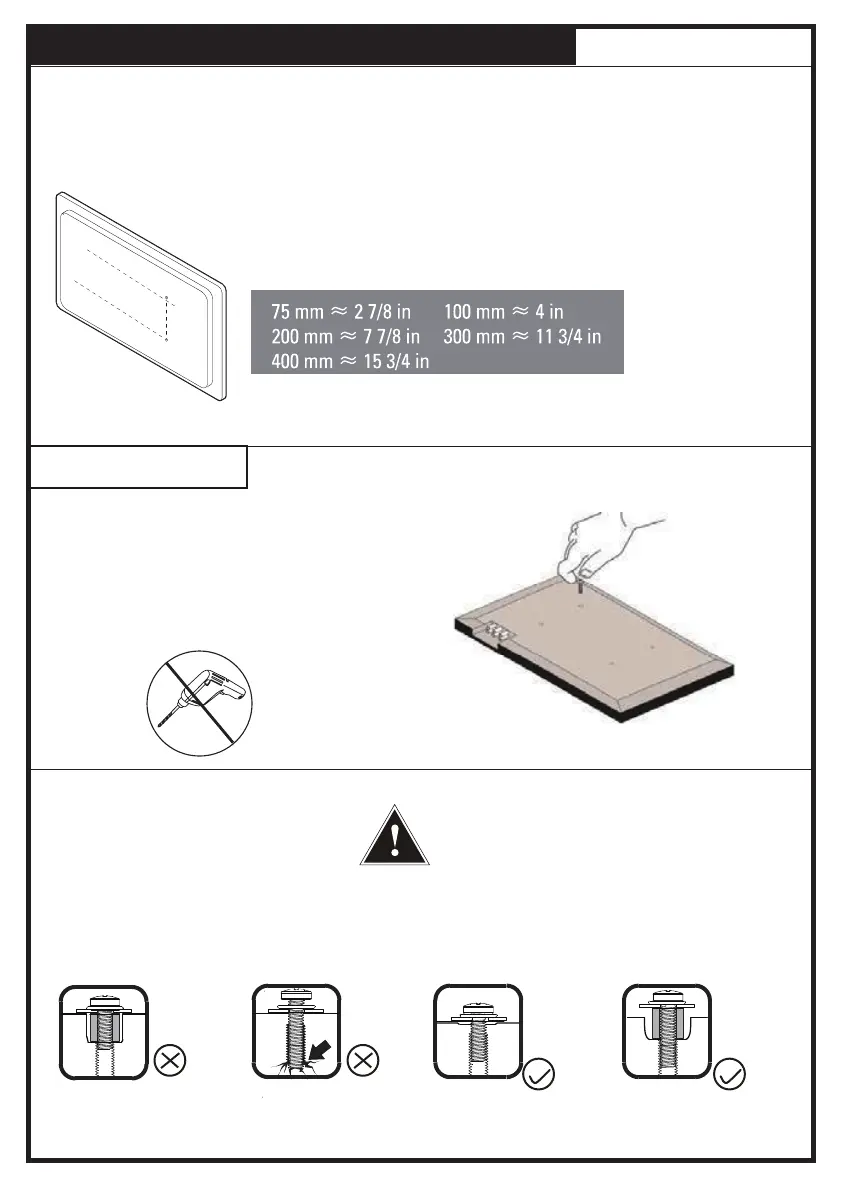

Step 1 Measure VESA and Check TV screws
Check TV screws
When attaching brackets to the flat screen, be careful not
to over tighten screws and be sure that screws do not
bottom out in the mounting holes.
Too Short
Too Long
Correct
Correct
Hand thread screws into the threaded
inserts on the back of your TV to
determine which screw diameter ( M6,
or M8) to use.
Width
Height
Measure the distance between the holes located at the back of
your TV (these measures may form the shape of a square, or a
rectangle) and check that these taken measures are within the
VESA(*) range for this wall mount.(*) VESA: International
standard established by the TV manufacturers used to
determine if LCD/LED TVs are compatble with wall mounts.
