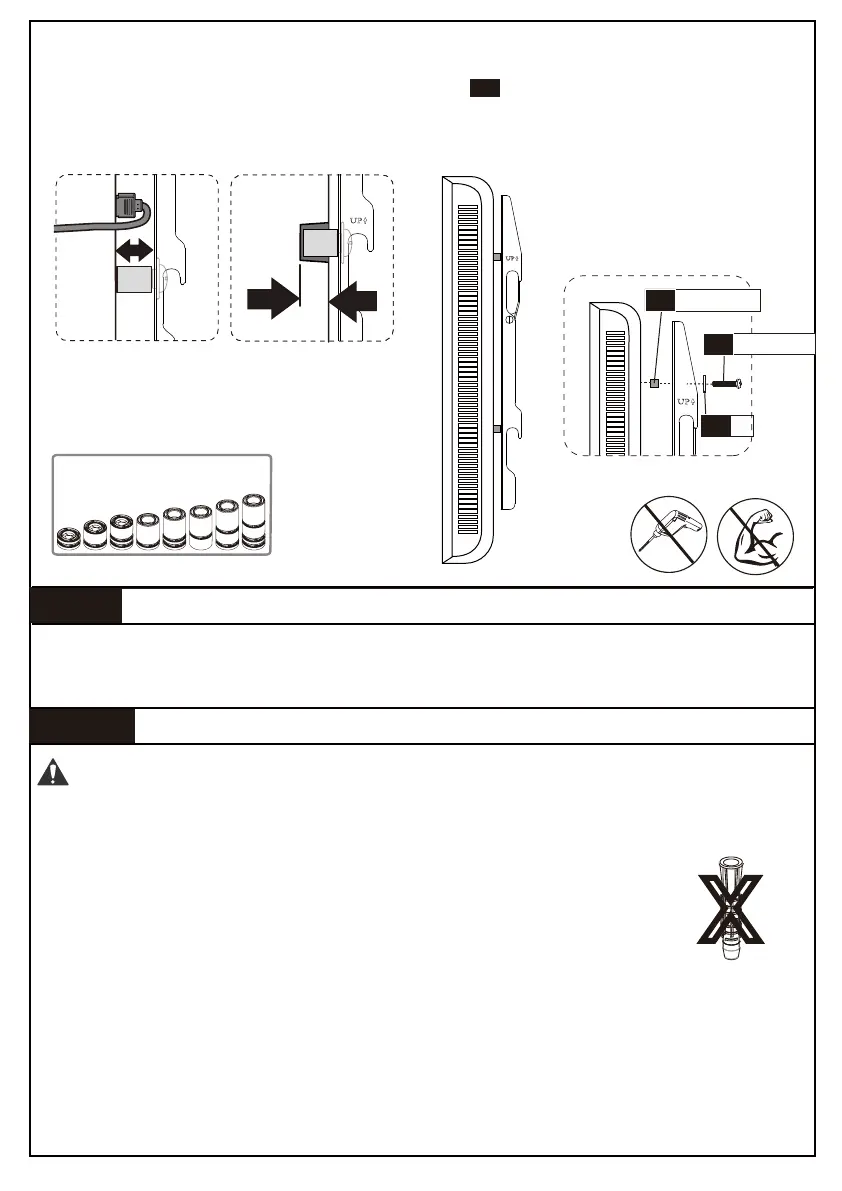

Option D
For cable interference or inset holes, use spacers to create extra
space between the TV and TV brackets
Alternate
Spacer
Setups
05
WARNING:
● Any material covering the wall must not exceed 5/8 in. (16 mm)
● Nominal wood stud size: common 2 x 4 in. (51 x 102 mm) minimum 1½ x 3½
in. (38 x 89 mm)
● Stud center must be verified
Step 2
For wood stud installation, follow STEP 2A
For concrete installation, follow STEP 2B
Attach the Arm and Wall Plate [01] to Wall
Step 2A
Wood Stud Option
X
●DONOT USE ANCHOR [A3] FOR THIS STEP!
●Avoid potential personal injury or property damage! DO NOT over-tighten the
lag screws [A1]. Tighten the lag screws [A1] only until the washers [A2] are
pulled firmly against the wall plate.
●Ensure the arm and wall plate[01] is securely fastened to the wall before
continuing to the next step.
06
B
04
08
D2/E2/E3
07
C1/C2/C3
UP
UP
UP
01 02 03 04 05 06 07 08 09 10 11 12 13 14
