Perlesmith PSTVMC06 - Step 5 Secure the TV Plate

Step 5
C

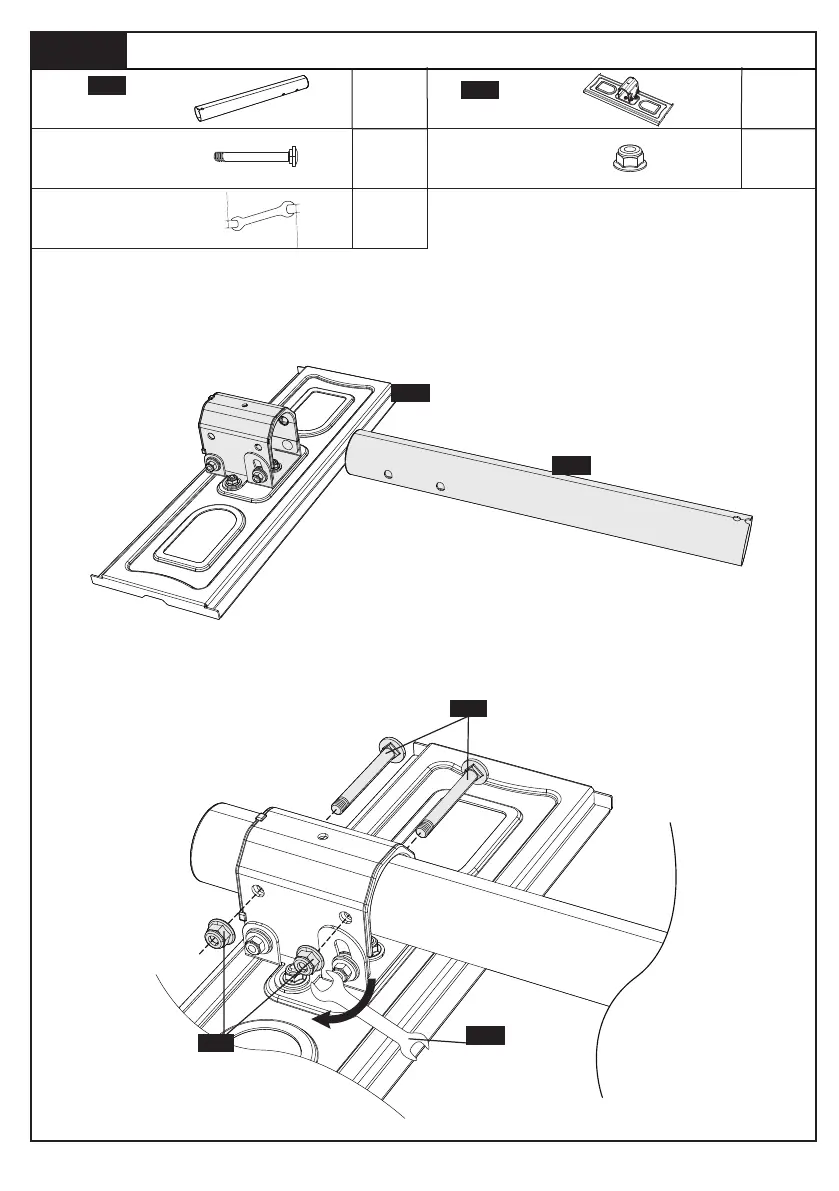

Secure the TV Plate [09] to the Upper Pole [08]
5-1 Slide the upper pole [08] to the TV plate [09].
5-2 Secure the upper pole [08] to the TV plate [09] by tightening
the bolts [C] and nuts [D].
Upper Pole
D
x1
x1
x2
x2
TV Plate
x1
M8
Nut
08
09
Wrench
10mm
12mm
I
C
Bolt
08
09
D
I
