Perlesmith PSTVMC06 - Step 4 Secure the Middle Pole

Step 4
06
05
07
F
07

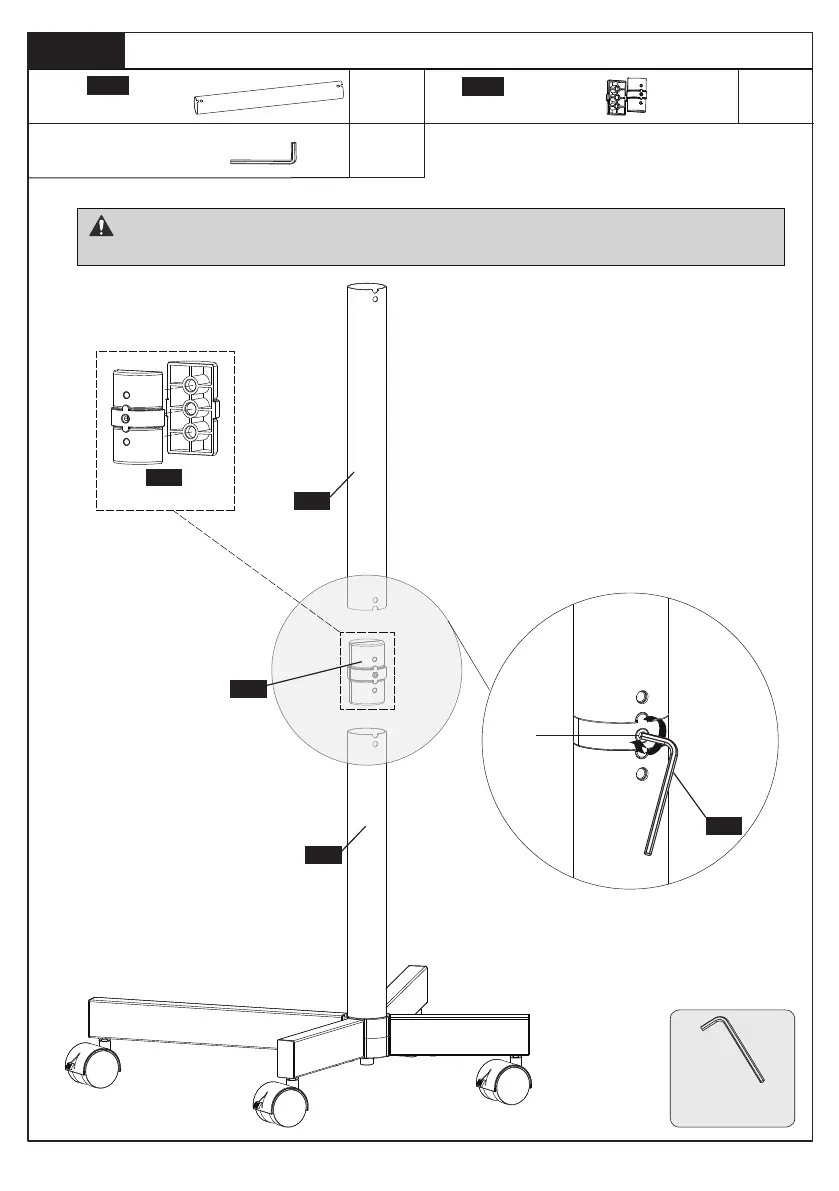

Secure the Middle Pole [05] to Lower Pole [06]
Note: The convex grooves on the pole connector [07] should be aligned with the grooves on
the lower pole [06] and middle pole [05].
5/32 in (4mm)
Small Allen Key
4-1. Conenet the two parts of pole
connector [07].
4-2. Insert the assembled pole
connector [07] to the lower pole [06].
4-3. Insert the middle pole [05] to the
pole connector [07]
4-4.Tighten the preassembled setscrew
[T] to secure the two poles [05] and [06]
T
5/32 in (4mm)
Small Allen Key
F
x1
x1
x1
Middle Pole
05
Pole Connector
07
Small Allen Key
