Perlesmith PSTVMCO4 - Step 2 Attach Square Tubes to Base; Step 3 Assemble Vertical Poles

Use Tool Kit(21)
Use Tool Kit(21)
10
3
11
1
2
Front
BACK
4
12
5
6
6
5
8
7

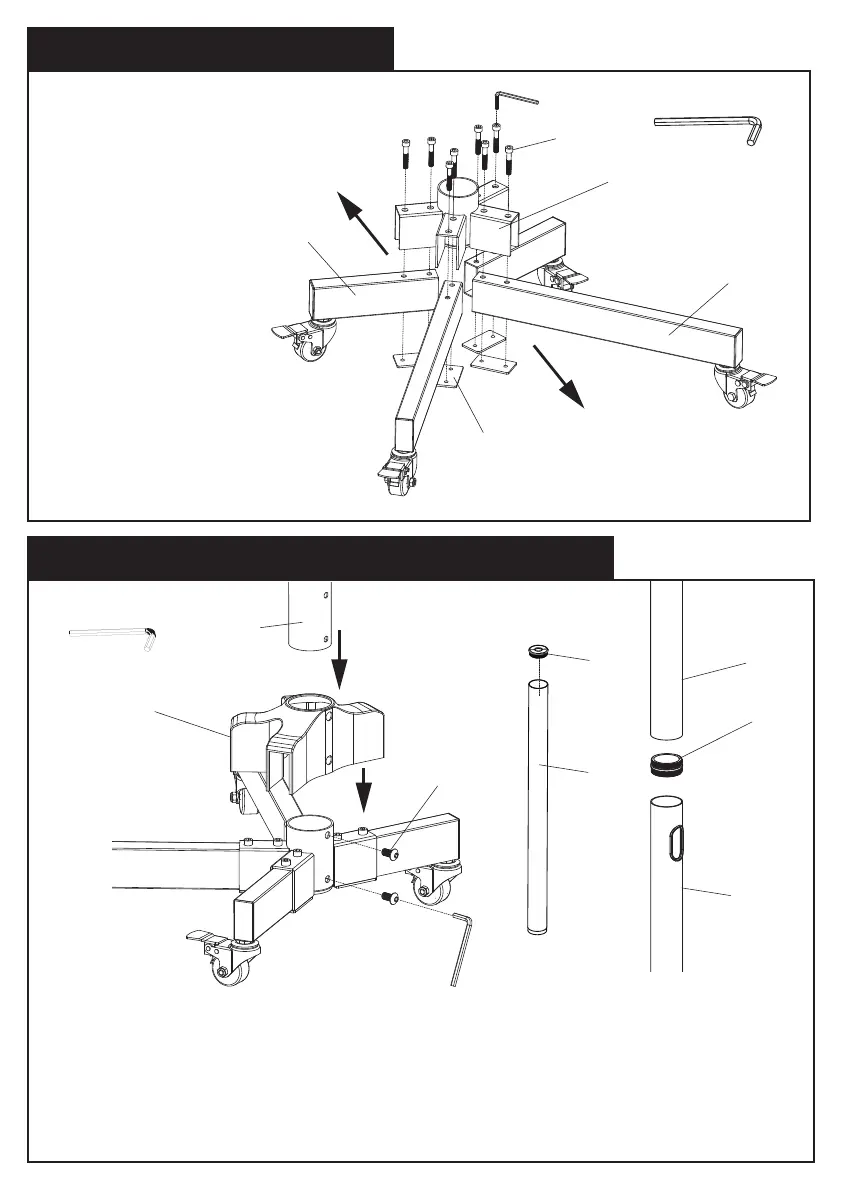

Step 2 Attach Square Tubes
Step 3 Attach Tube Connector Cover And Poles
Attach the square tubes (1, 2) to the
tube connection (3) by using M6x60
bolts (10) and socket plate (11)
1.Attach tube connector cover (4) to the tube
2.Attach the base pole (5) to the tube connector (4) by using M6x10 bolts (12).
3.Thread on the pole connector (7) to the top of the base pole (5)
4.Thread on the pole (6) to the pole connector (7) then install the pole cover (8) on the top
of the pole (6)
