Preparing for use
4.1.4.5 Armrest height and angle

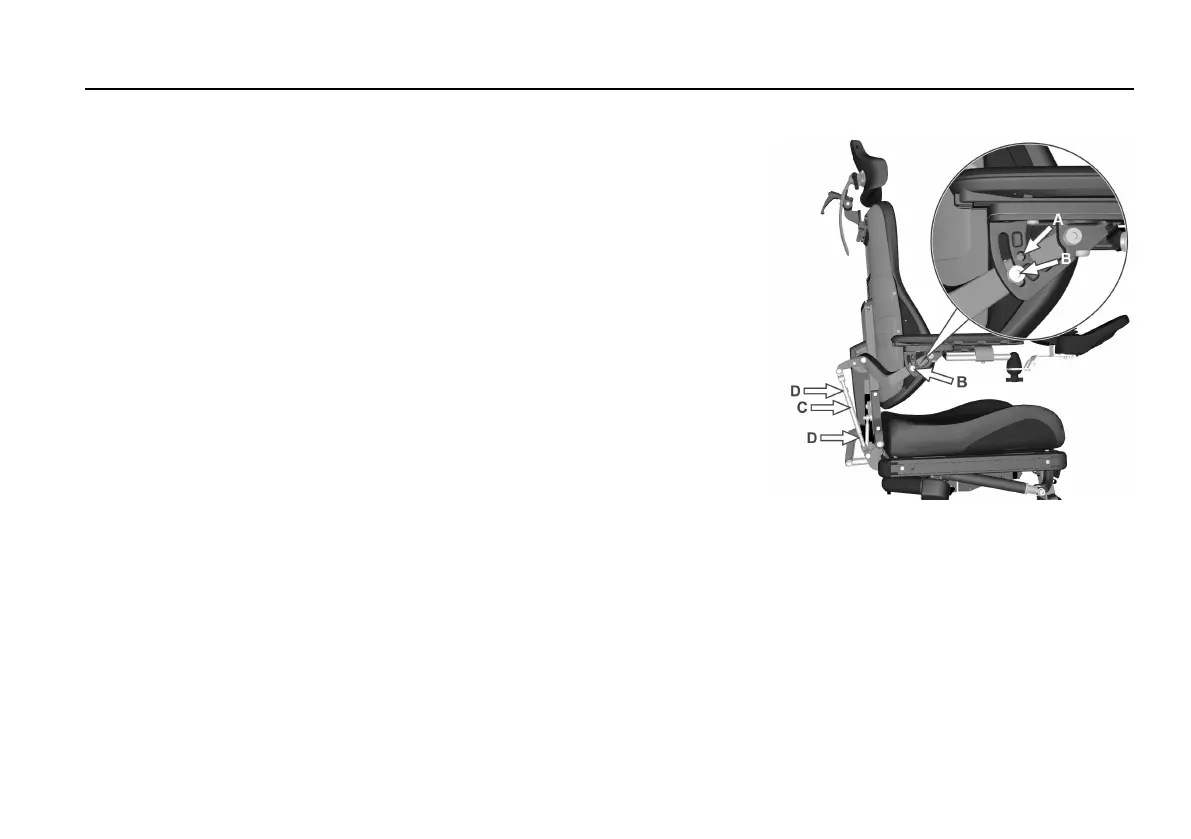

Figure 132. Adjusting the armrest height and angle.
The following tools are necessary for this task:
• 1 Allen key, 8 mm.
The armrest height and angle are usually adjusted as described
previously. However, for special needs, the armrests are adjustable
individually for users who want a left and right armrest at different
heights and/or angles. The angle of the armrest is secured using a
screw.
1. Loosen the two nuts (D) securing the position of the adjustment
bar.
2. Adjust the armrest by turning the adjustment bar (C).
3. Secure into position by tightening the lock nuts (D).
4. Secure the armrest angle by moving the screw from a fixed
position (A) to a flexible position (B).
5. Adjust the armrest to the required angle.
6. Secure by tightening the screw (B).
