Permobil F3 Corpus - Battery Connections and Main Circuit Breaker

F3 Corpus
Getting to know your wheelchair
3.3.8 Battery connections and main circuit
breaker

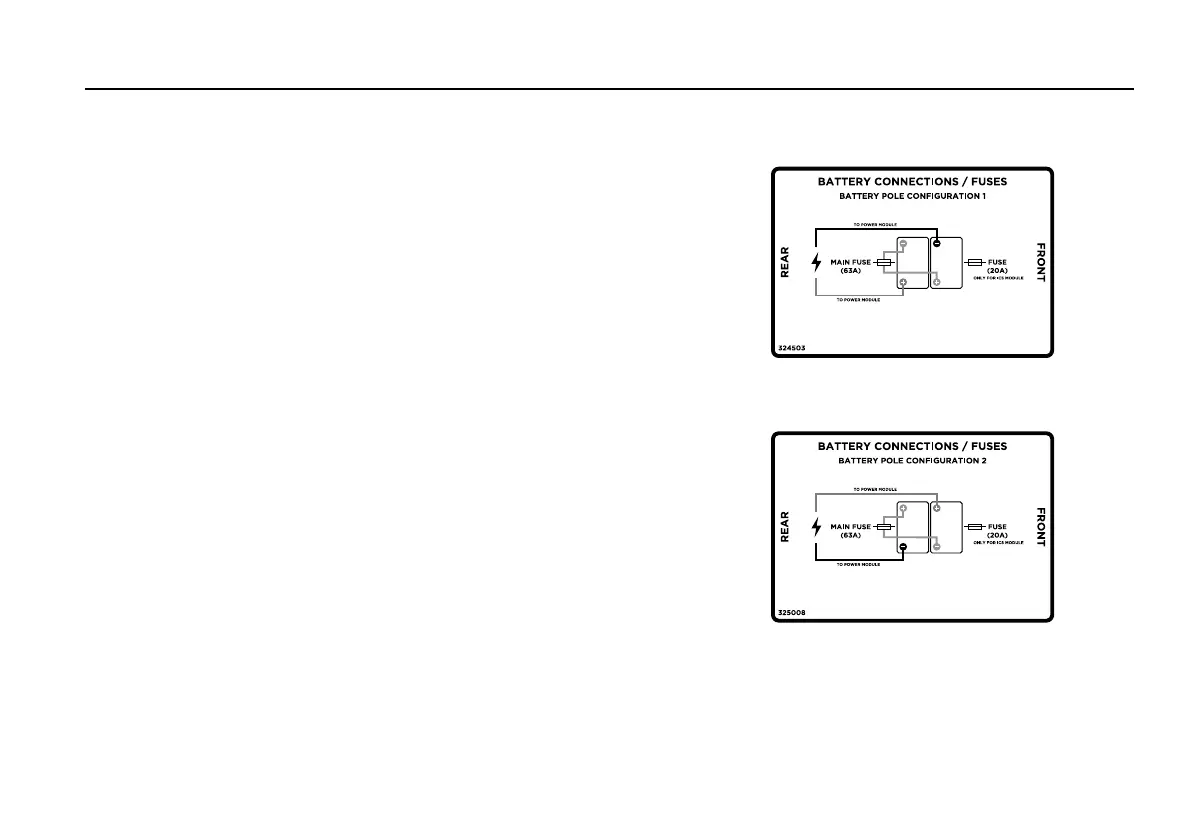

Figure 9. Battery terminals, main circuit breaker and
fuse, apply to products equipped with 60 Ah batteries.
Figure 10. Battery terminals, main circuit breaker and
fuse, apply to products equipped with 73 Ah batteries.
The labels show the polarity, which differs depending on which
battery capacity, 60 Ah or 73 Ah, the product is equipped with.
The positive battery cable (+) is shown in red on the label.
