F3 Corpus
Preparing for use
WARNING!
Risk of injury – adjust floor-to-footplate
clearance
After adjustment, and with the seat lift in its lowest position, make sure there
is sufficient clearance (at least 25 mm) between the ground and the
footplate at all times when moving the leg support in or out. Perform this test
with the user sitting in the wheelchair with his or her feet on the footplates.
4.1.6.2 Footplate angle

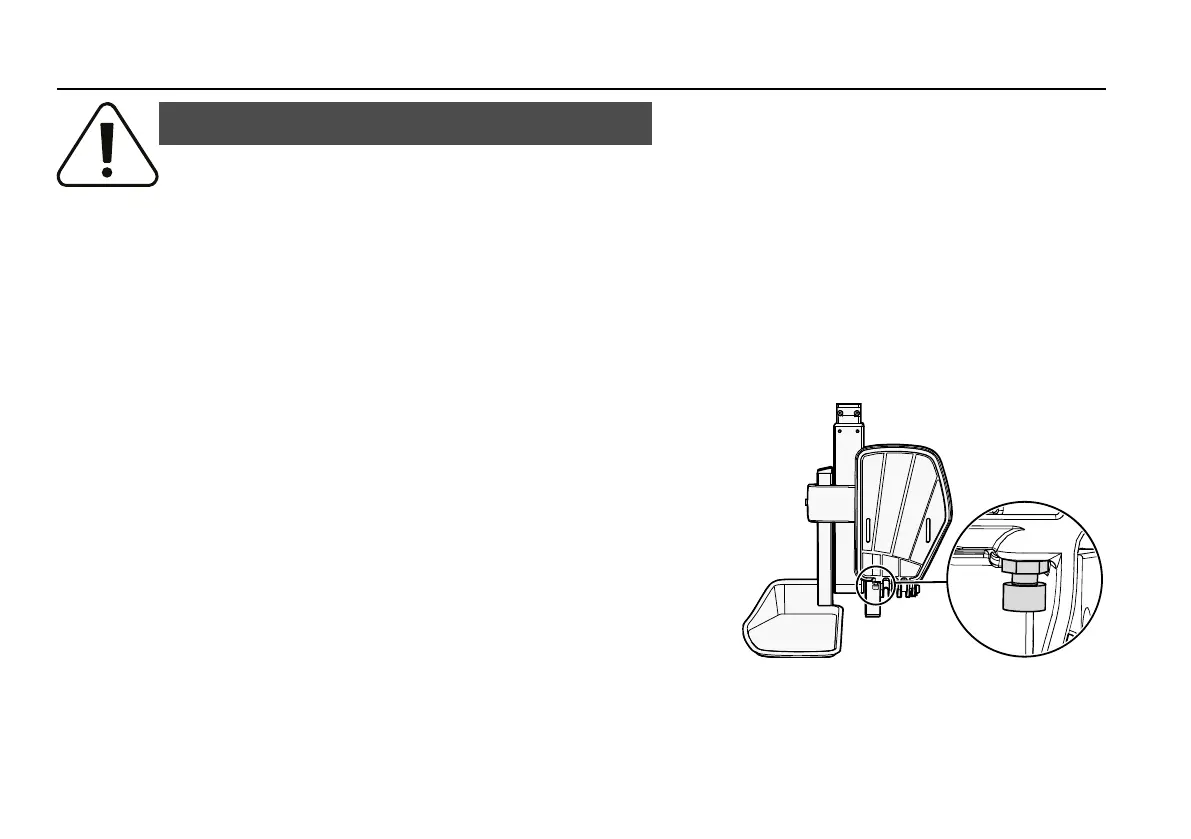

Figure 136. Footplate angle detent screw.
The angle of the footplates is adjusted using detent screws under
each footplate.
1. Tilt up the footplate.
2. Undo the lock nut.
3. Set to the required angle by adjusting the detent screw in or out.
4. Lock the stop screw in the required position using the lock nut.
152
