TouchScreens
•PACCARTruckNavigationInternal
Diagnostics
Themessageswilldisplayaslong
asthefaultremainsactivefromthe
systemsource.Oncethefaultisno
longeractive,themessagewillbe
removedfromthescreen.
TheDiagnosticMessageHomeScreen
willshowamaximumof5messages
perscreenandcanbepagedupor
downusingthearrowsontheright
handsideofthescreen.
Theupanddownarrowswillbe
grayunlesstherearemorethan5
messages.

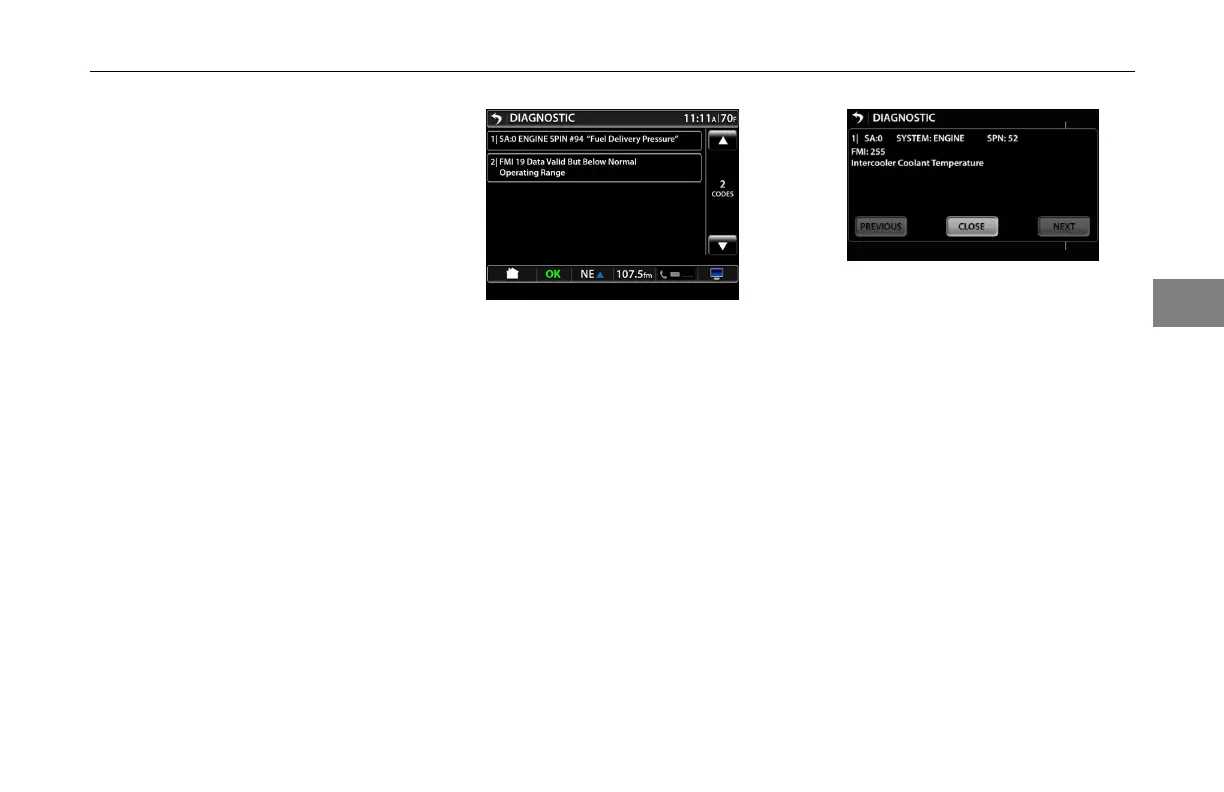

TruckDiagnosticsScreen
Onceamessageisselected,the
systemwillgototheDiagnostic
DetailScreen.Thisfeaturewillshow
theactivediagnosticmessageson
thevehicleandcannotbeusedas
amethodtoclearthem.
Clearing
messageswillhavetobedonethrough
thesystemsdiagnosticclearing
processes.
TruckDiagnosticDetailScreen
Thediagnosticdetailscreenwill
display:
•SourceAddress
•SourceofDiagnosticCode
•SPN
•FMI
•TextDescriptionofCode
TheusercanpresstheCLOSEbutton
atthebottomtoreturntotheTruck
DiagnosticHomeScreen.
3-9
3
