-19-

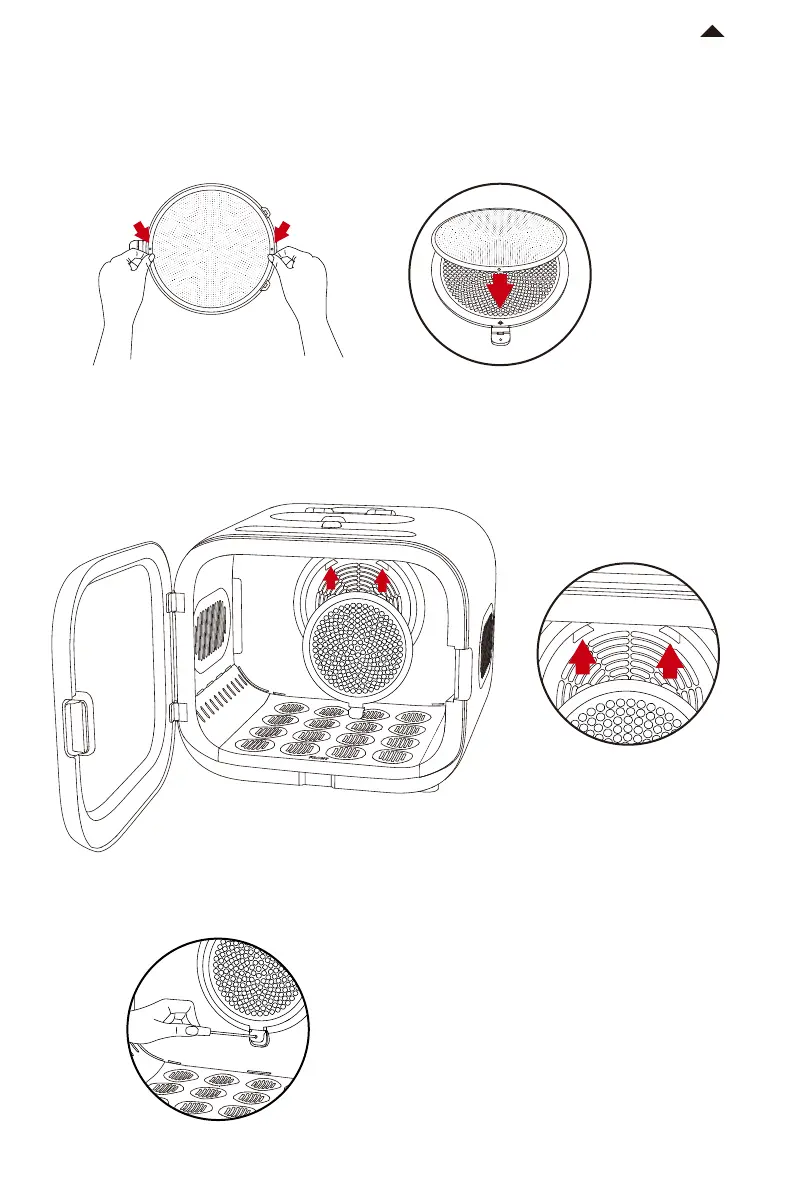

③ Install the filter screen and air inlet filter plate:
First step, install the filter screen on the back of the air inlet filter plate and press with hand,
make sure that the cylinders on both sides are embedded in the round holes;
Second step, place the two protrusions above the air inlet filter plate, align the two slots c and
d on the air outlet (as shown in the picture), press the handle of the air inlet filter plate until a
"snap" sound is heard to confirm the installation;
Third step, use a screwdriver to tighten the air inlet filter plate screws.
c
d
