16.
Changing
the
feed
gears
Exchanging the feed gears is greatly facilitated by the wheel puller which Is supplied
with the machine. To pull the feed
gear
off its shaft, slip the fork of the wheel puller
under
the
projecting
rim of
the
hub
and
puli (Fig. 18),
Consult the diagram on the feed
gear
housing (Fig, 18) to
see
how the feed
gears
have
to be exchanged to obtain the stitch length group and stitch length desired. Exchange
the
feed
gears
accordingly.
For better Identification, the
outside
of the feed
gears
and the
corresponding
symbols
used in the diagram are painted yellow, green, red and blue. In slipping the feed gear
onto
its shaft,
see
that
the
key on
the
shaft
enters
the
notch in
the
feed
gear
and
that
the
mating
gears
are
meshed
properly.
For instructions on how to
adjust
the
trimmer of
the
Pfaff 141-705/03-725/01.
please
refer
to
Chapters
17
and
18.
m
R
6585
IPI

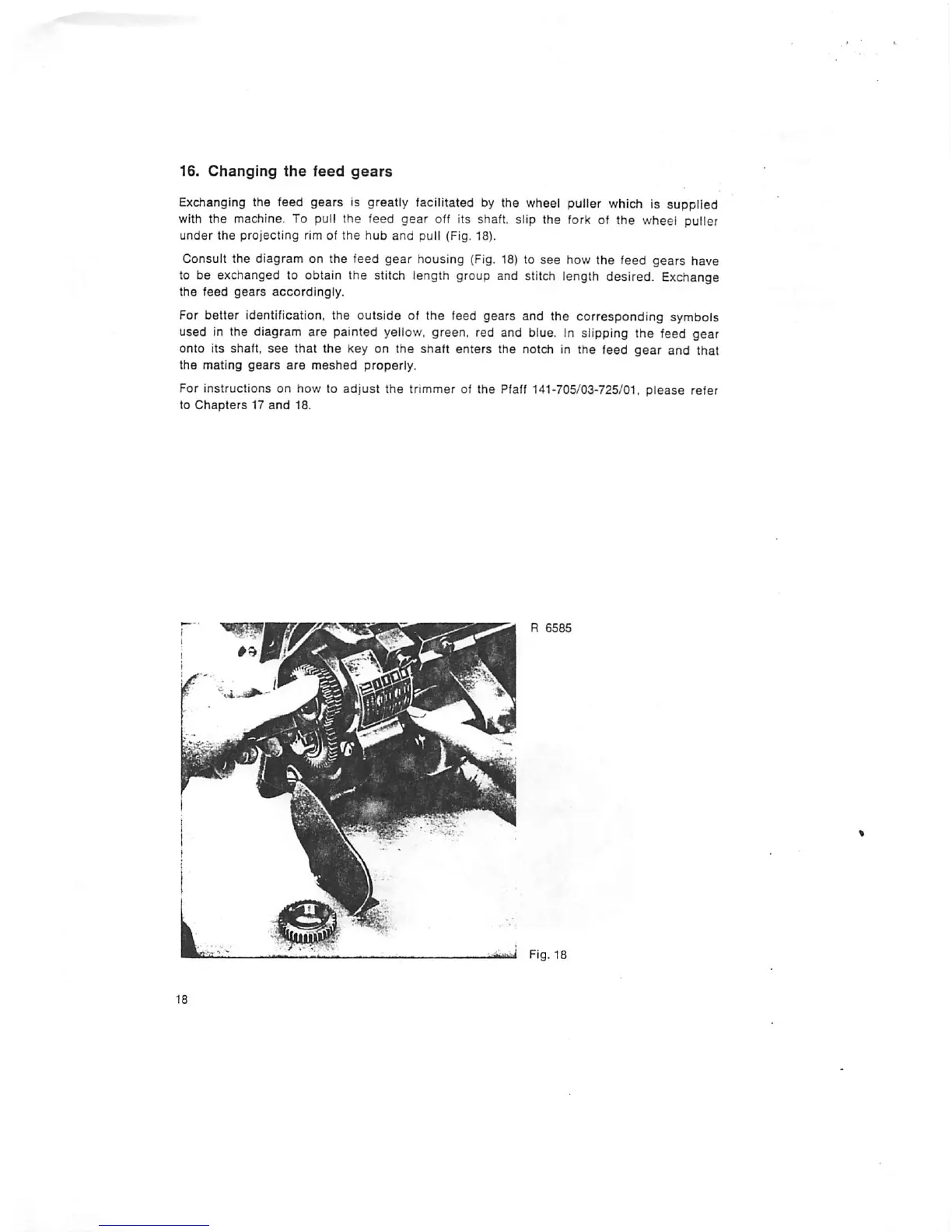

Fig. 18
