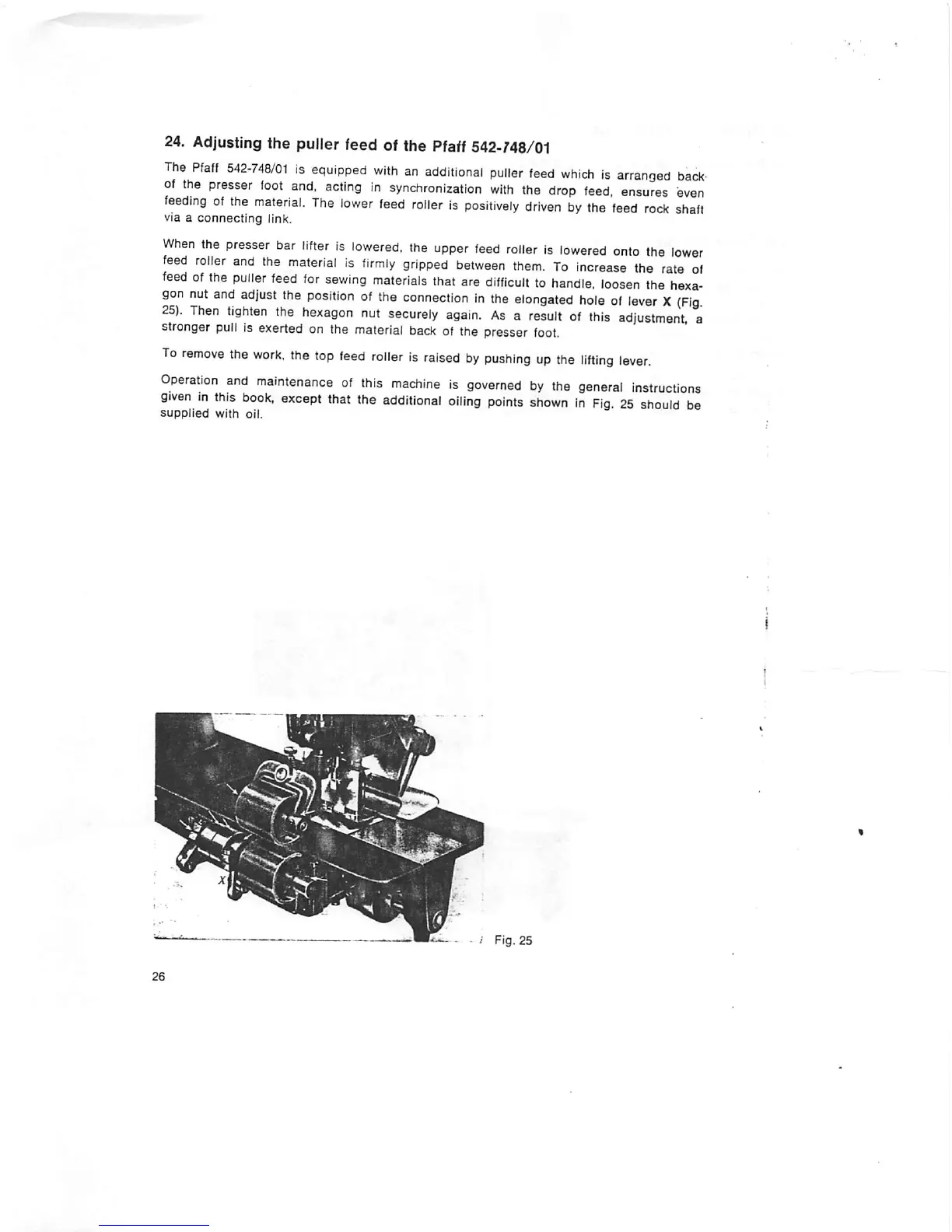

24. Adjusting the puller feed of the Pfaff 542-/48/01
The Pfaff 542-748/01 is equipped with an additional puller feed which is arranged bacif
of the presser foot and, acting in synchronization with the drop feed, ensures even
feeding of the material. The lower feed roller is positively driven by the feed rock shaft
via a connecting link.
When the presser bar lifter is lowered, the upper feed roller is lowered onto the lower
feed roller and the material is firmly gripped between them. To increase the rate of
feed of the puller feed for sewing materials that are difficult to handle, loosen the hexa
gon nut and adjust the position of the connection in the elongated hole of lever X (Fig.
25). Then tighten the hexagon nut securely again. As a result of this adjustment a
stronger pull is exerted on the material back of the presser foot.
To remove the work, the top feed roller is raised by pushing up the lifting lever.
Operation and maintenance of this machine is governed by the general instructions
given in this book, except that the additional oiling points shown In Fig. 25 should be
supplied with oil.
' Fig. 25
