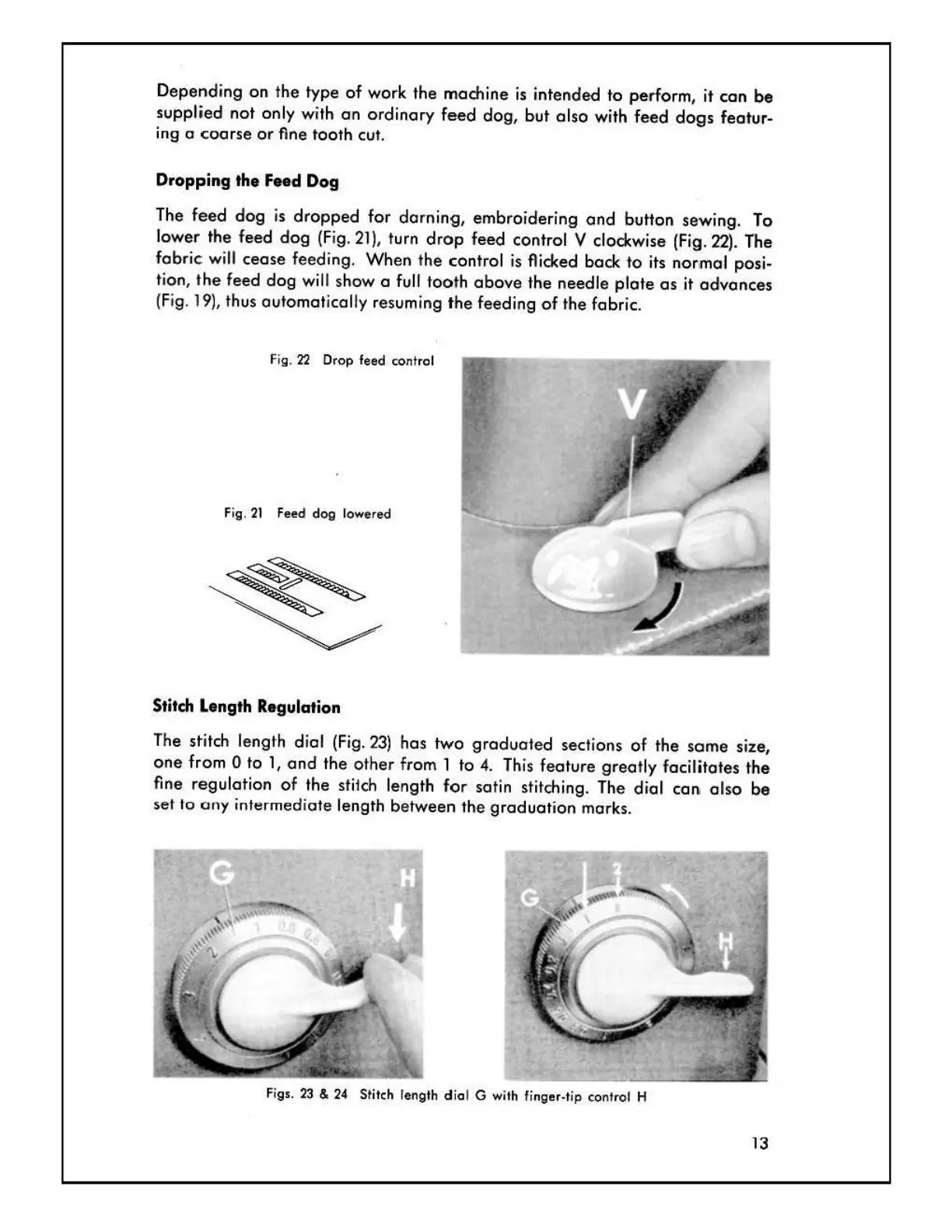

Depending on the type of work the machine is intended to perform, it can be
suppli ed not only with an ordinary feed dog, but also with feed dogs featur-
ing a coarse or flne tooth cut.
Dropping the Feed Dog
The feed dog is dropped for darning, embroidering and button sewing. To
lower the feed
dog (F ig. 21), turn drop feed control V clockwise (Fig. 22). The
fabric will cease feeding. When the control is flicked back to its normal posi-
tion, the feed dog wi ll show a full too th above the needle plate as it advances
(Fig. 1 9), thus automatically resuming the feeding of the fabric.
fig. 22 Drop feed control
Fig. 21 Feed dog lowered
Stitch Length Regulation
The stitch length di al (F ig. 23) has two graduated sections of the some size,
one from 0 to l, and the other from l to 4. This feature greatly facilitates the
fine regulation of the sti1ch length for satin stitching. The dial can also be
set to any intermedi ate length between the graduation marks.
Figs. 23 & 24 Stitch length dial G with finger-tip control H
13

Pfaff 260 Specifications

General

Type	Mechanical
Needle Position	Adjustable
Free Arm	Yes
Reverse Stitch	Yes
Presser Foot	Snap-on
Operation	Manual
Buttonhole	4-step
Bobbin	Class 15
Speed Control	Foot pedal
Stitch Functions	Zigzag
Needle Positions	Variable
