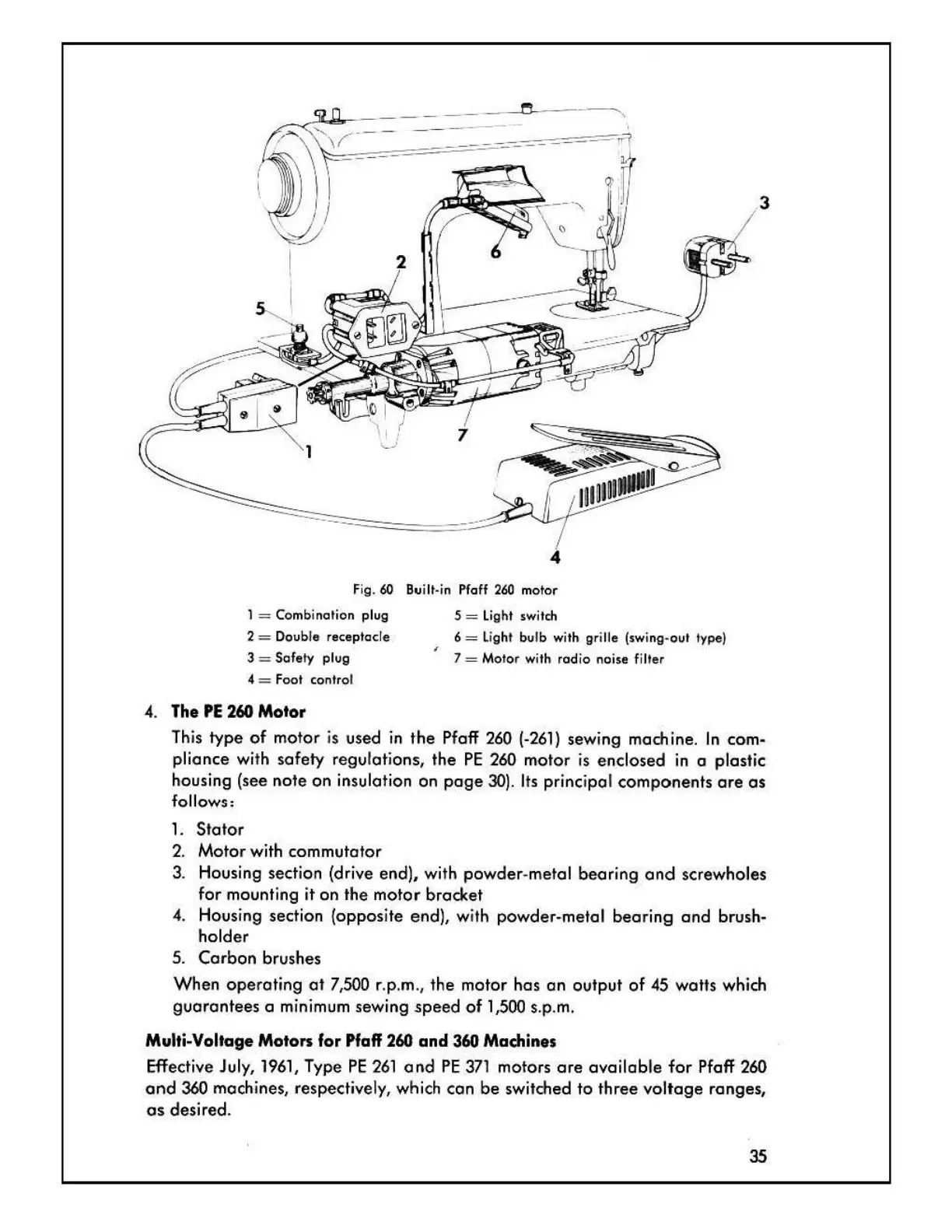

Fig. 60 Built-in Pfaff 260 motor
1 = Combination plug
2 = Double receptacle
3 = Sofety plug
4
= Foot control
4. The PE 260 Motor
5 = Light switch
6
= Light bulb with grille (swing-out type)
7
= Motor with rodio noise filter
3
This type of motor is used in the Pfaff 260 (-261) sewing machine. In com-
pliance with
safety regulations, the PE 260 motor is enclosed in a plastic
housing (see note on insulation on page 30). I ts principal components are as
follows:
1. Stator
2. Motor with commutator
3. Housing section (drive end), with powder-metal bearing and screwholes
for mounting it on the motor bracket
4. Housing section (opposite end), with powder-metal bearing and brush-
holder
5. Carbon brushes
When operating at 7,500 r.p.m., the motor has an output of 45 watts which
guarantees a minimum sewing speed of 1,500 s.p.m.
Multi-Voltage Motors for Pfaff 260 and 360 Machines
Effective July, 1961, Type PE 261 and PE 371 motors are available for Pfaff 260
and 360 machines, respective ly, which can be switched to three voltage ranges,
as desired.
35

Pfaff 260 Specifications

General

Type	Mechanical
Needle Position	Adjustable
Free Arm	Yes
Reverse Stitch	Yes
Presser Foot	Snap-on
Operation	Manual
Buttonhole	4-step
Bobbin	Class 15
Speed Control	Foot pedal
Stitch Functions	Zigzag
Needle Positions	Variable
