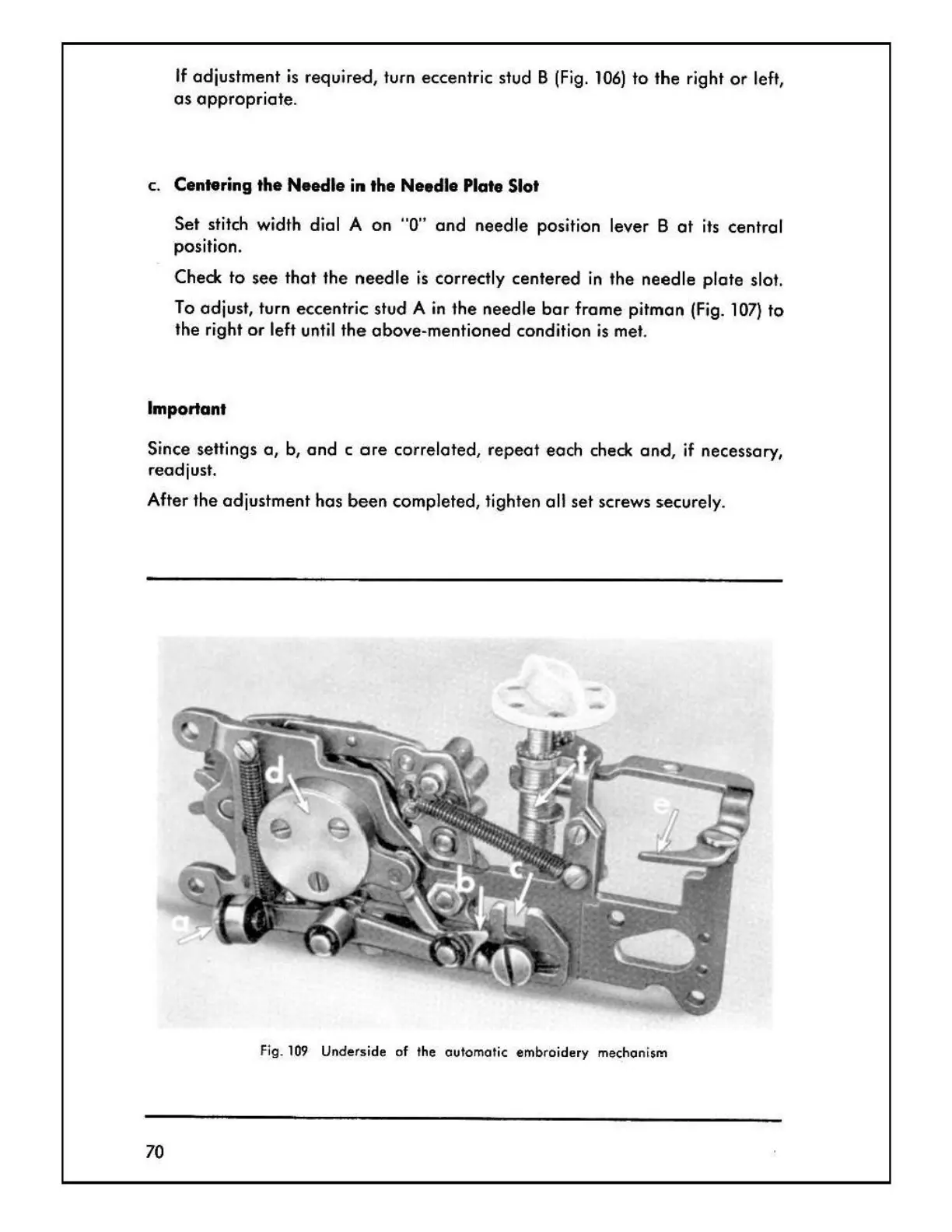

If adjustment is required, turn eccentric stud B (Fig. 106) to the right or left,
as appropriate.
c. Centering the Needle in the Needle Plate Slot
Set stitch width dial A on "0" and needle position lever B at its central
position.
Check to see that the needle is correctly centered in the needle plate slot.
To adjust, turn eccentric stud A
in the needle bar frame pitman (Fig. 1 07) to
the right or left until the above-mentioned condition is met.
Important
Since settings a, b, and c ore correlated, repeat each check and, if necessary,
readjust.
After the adjustment has
been completed, tighten all set screws securely.
Fig. 109 Underside of the automatic embroidery mechanism
70

Pfaff 260 Specifications

General

Type	Mechanical
Needle Position	Adjustable
Free Arm	Yes
Reverse Stitch	Yes
Presser Foot	Snap-on
Operation	Manual
Buttonhole	4-step
Bobbin	Class 15
Speed Control	Foot pedal
Stitch Functions	Zigzag
Needle Positions	Variable
