Pfaff 3371-1 series

Installation and commissioning
20
8.01.03 Fitting the reel stand
Fit the reel stand as shown in Fig. 8 - 03.
Afterwards insert the stand in the hole in
the table top and secure it with nuts pro-
vided.
●
●

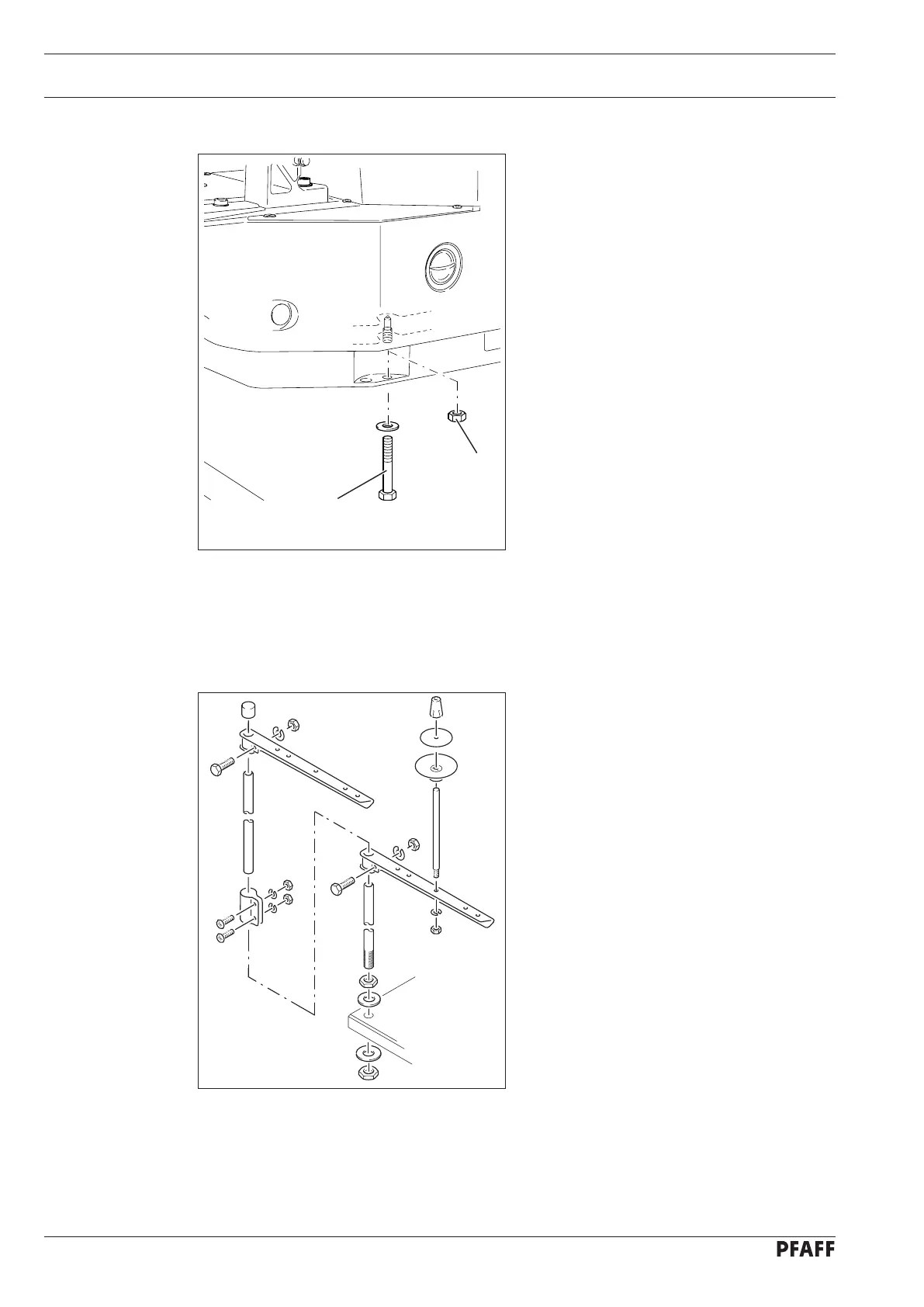

Fig. 8 - 03
8.01.02 Removing the transit lock
Loosen nut 1.
Remove screw 2.
●
●
Fig. 8 - 02
1
2
