Adjustment
11 - 5
11.
05.03
Bottom feed neutral position
Requirement
At stitch length setting
“
0”
, cranks
1
and
3
must be flush and the feed dog must not
make any feeding motion when the balance wheel is turned.
●
Raise the presser foot and set the stitch length to "0".
●
Turn crank
1
(screw
2
) according to the requirement.

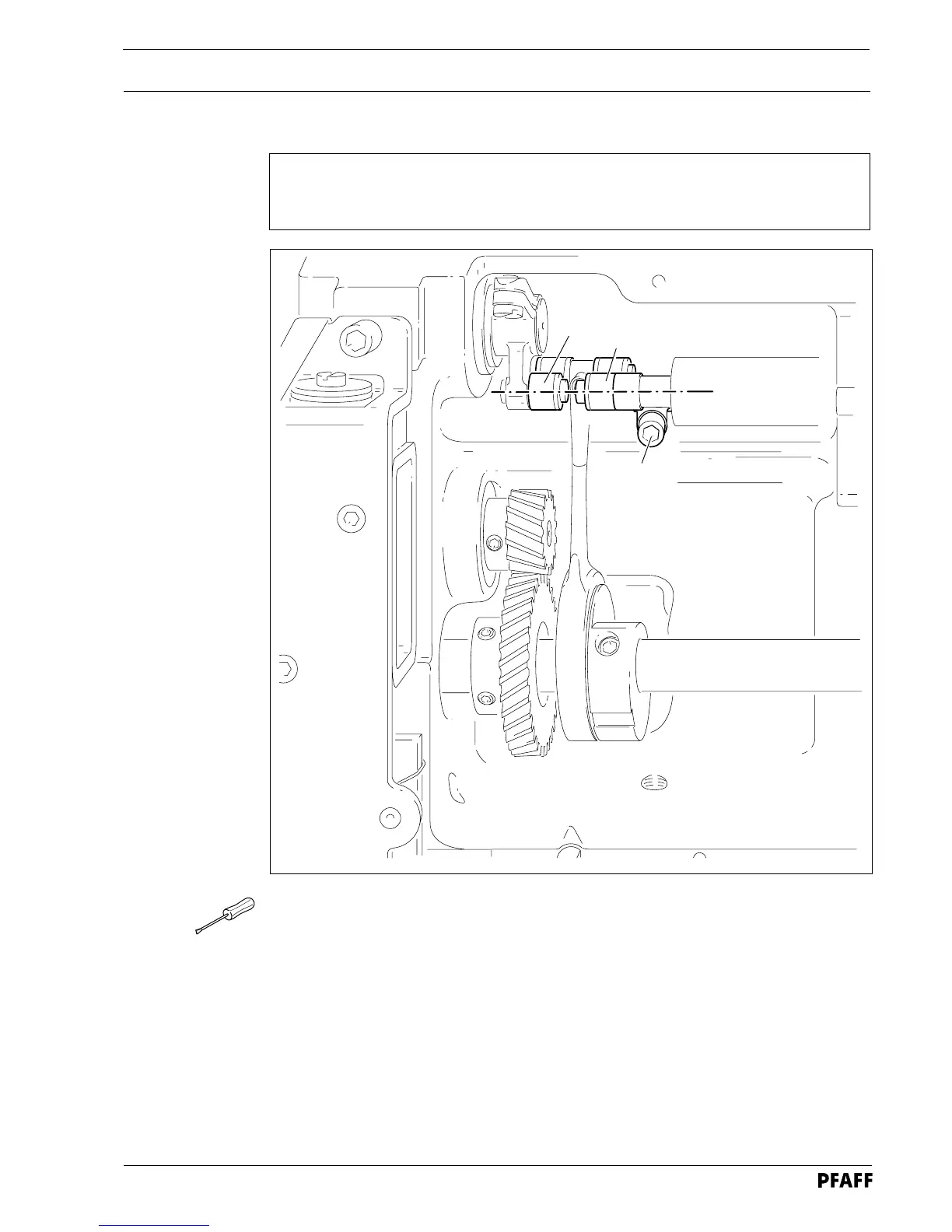

Fig. 11 - 04
3
2
1
36
38
