Pfaff 3701 Series User Manual
4
of 1
of 1 rating
74 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
W

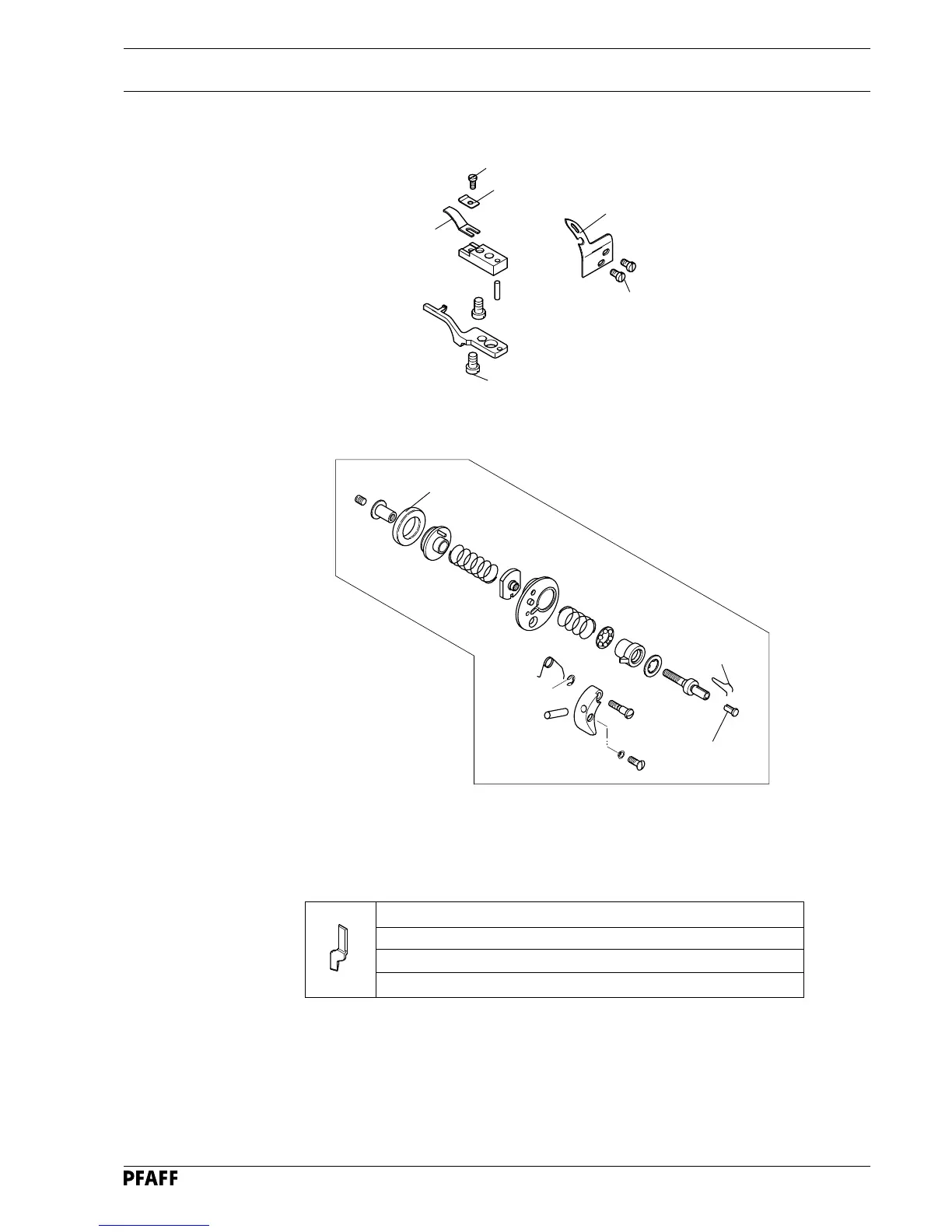

earing parts
