Adjustment
2.06 Front reversal point of the thread catcher
2.06.01 Setting for -900/97
Requirement
At the front reversal point of the thread catcher 6, the needle should move through the
middle of the hole of thread catcher 6 when the handwheel is turned.
2 - 3
97-2-02
Position needle bar at TDC.
Position end faces of piston rod 1 and nut 2 (nut 3) so that they are flush.
Pull out piston rod 1 manually as far as possible.
Turn connecting rod 4 (nuts 5, right-hand and left-hand thread) in accordance with the
requirement.

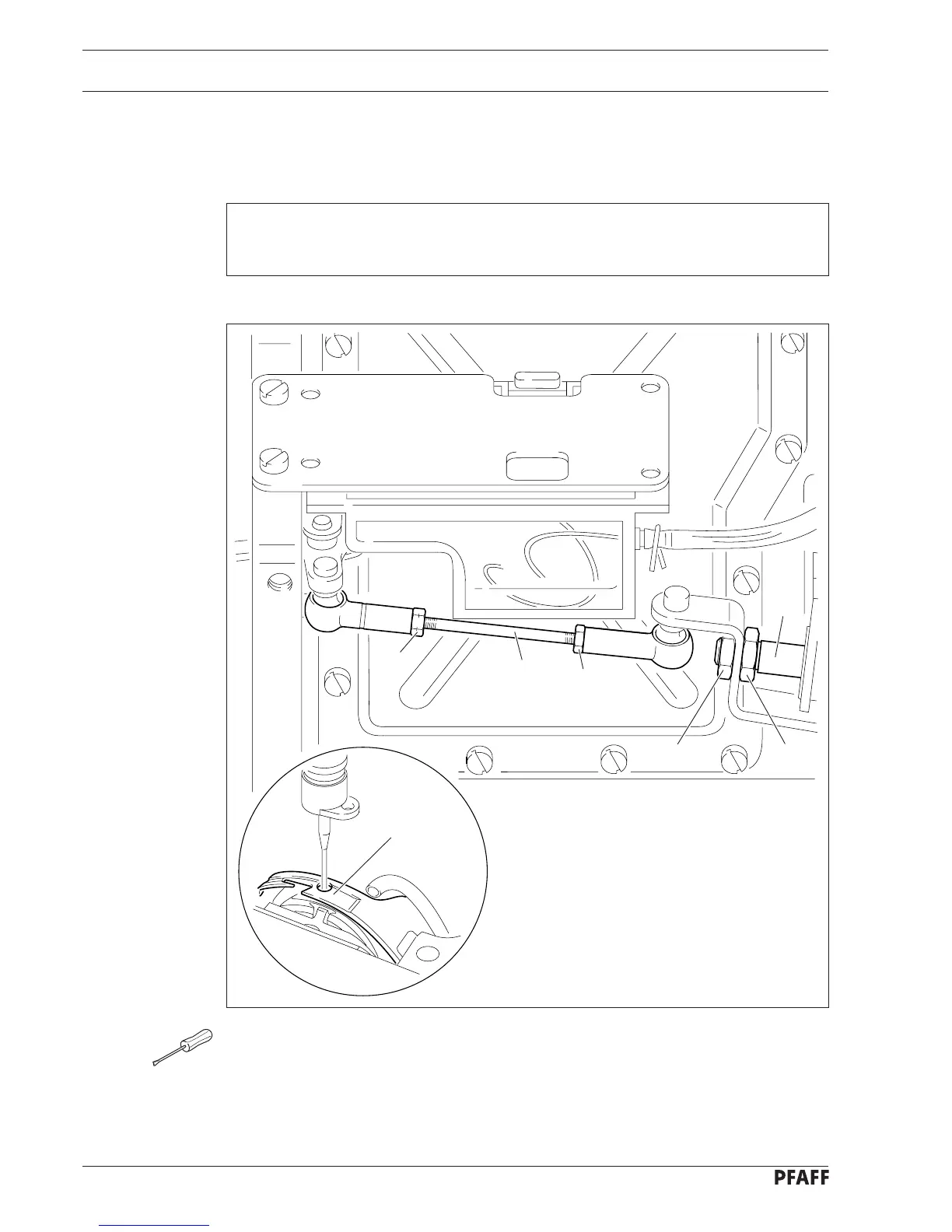

Fig. 2 - 02
6
5
4
1
3
2
5
