Adjustment
2.12 Mounting and dismounting the control unit
2
4
3
1
5

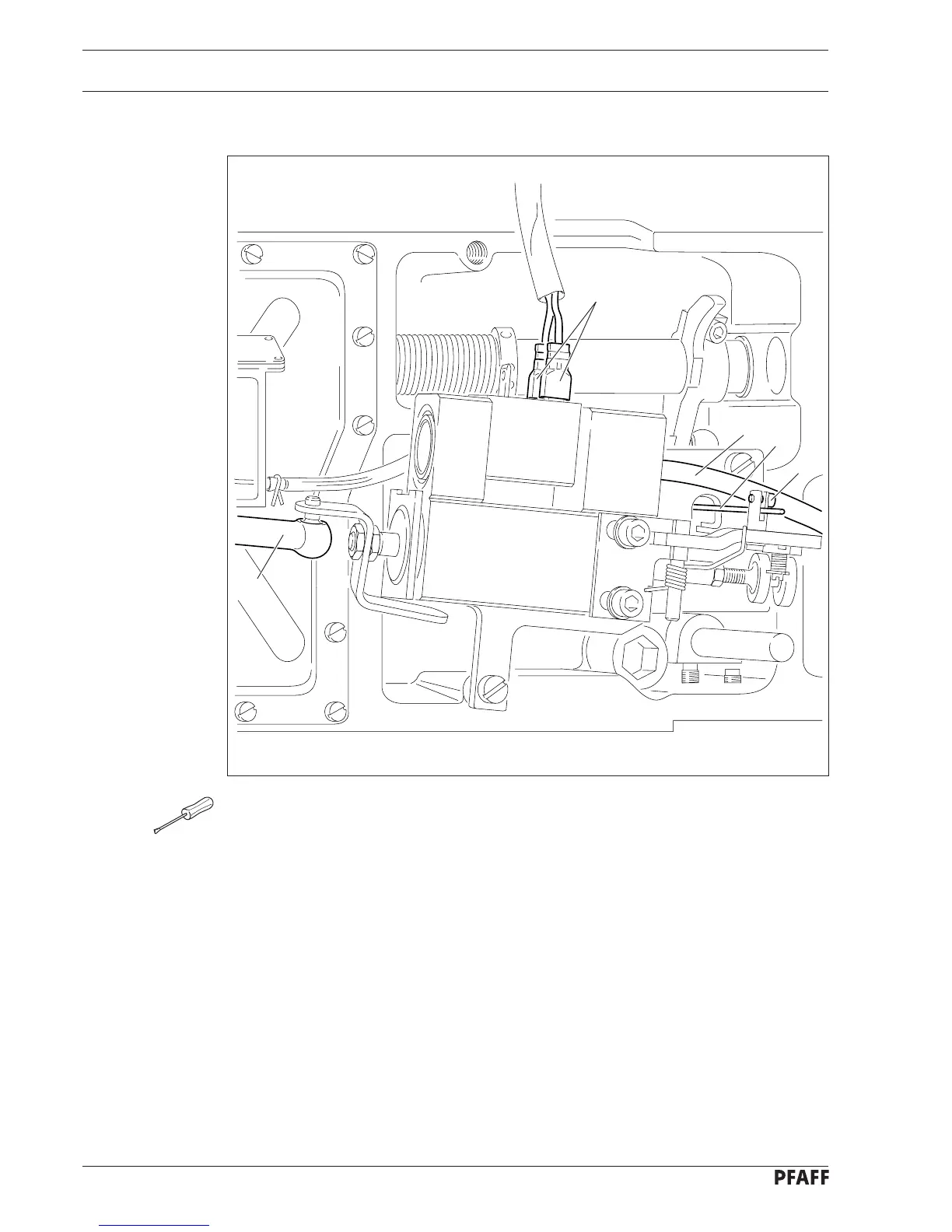

Fig. 2 - 09
● In order to dismount the control unit, pull out plugs 1.
● Push in the mounting of the pneumatic connection and pull off hose 2.
● Loosen screw 3 and remove linkage 4 from the slot.
● Pull the ball heads of connecting rod 5 off the ball pins on the trimming and control
units and remove connecting rod 5.
● Unscrew the three retaining screws of the control unit and lift off the complete unit.
● To remount, put the control back on and tighten the retaining screws firmly.
● Push the ball heads of the connecting rod 5 onto the ball pins on the trimming and
control units.
● Return linkage 4 to its slot and tighten screw 3 firmly.
● Connect plugs 1.
● Check adjustment and carry out function check.
2 - 11
