Additional instructions
for Pfaff machines 141-705/03 and 141-705/03-725/01
The Pfaff 141-705/03 and 141-705/03-725/01 have the same feed regulator. This new
mechanism makes it possible to select the proper stitch length out of twelve different
stitch lengths available. These twelve stitch lengths are divided into four stitch length

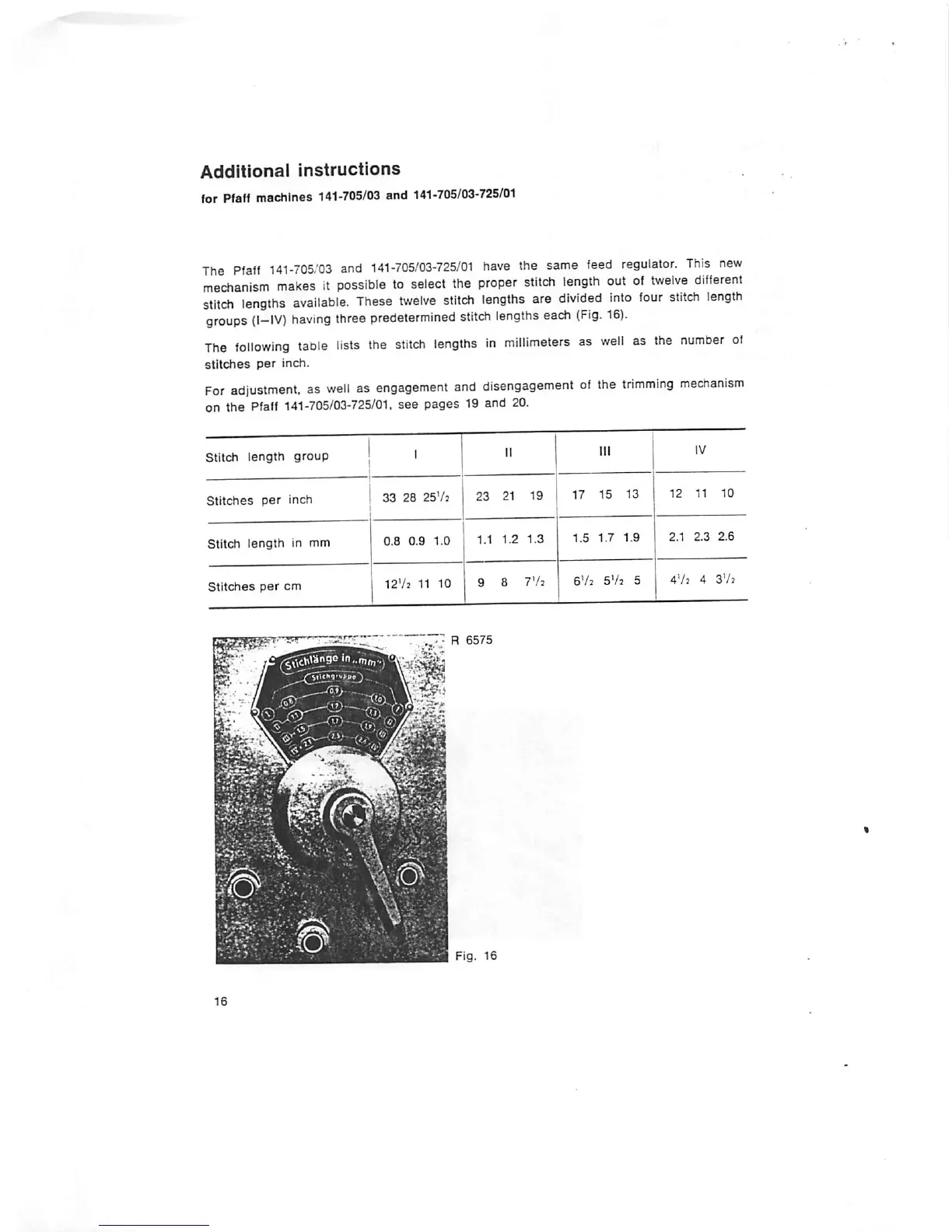

groups (l-IV) having three predetermined stitch lengths each (Fig. 16).
The following taoie lists the stitch lengths in millimeters as well as the number of
stitches per inch.
For adjustment, as well as engagement and disengagement of the trimming mechanism
on the Pfaff 141-705/03-725/01. see pages 19 and 20.
Stitch length group
Stitches per inch
33 28 25V2 23 21 19 17 15 13 12 11 10
Stitch length in mm
0.8 0.9 1.0 1.1 1-2 1.3 1.5 1.7 1.9 2.1 2.3 2.6
Stitches per cm
12'/? 11 10 9 8 Th 6Vj 5Vj 5 4V2 4 3'/?
R 6575
Fig. 16
