Additional instructions
for Pfaff machines 145
Pfaff machines 145 are fitted not only with compound feed like the Pfaff 141. but also
with alternating pressers which makes them unison-feed machines capable of feeding
materials that are difficult to handle.
Apart from the general instructions given for Pfaff machines 141 and 143 which apply
to Pfaff machines 145 also, the following special instructions should be heeded;
20. Exchanging the alternating pressers

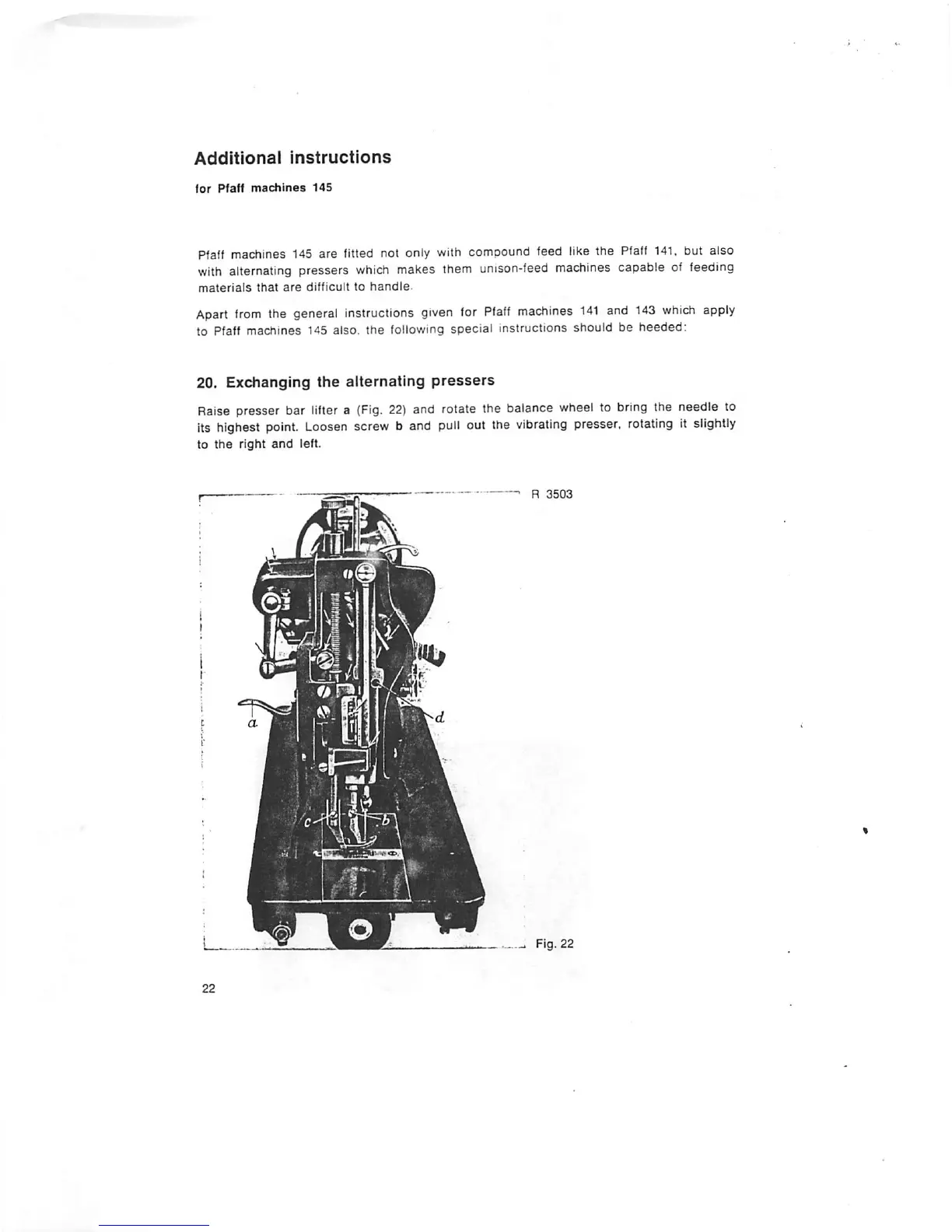

Raise presser bar lifter a (Fig. 22) and rotate the balance wheel to bring the needle to
its highest point. Loosen screw b and pull out the vibrating presser, rotating it slightly
to the right and left.
R 3503
Fig. 22
From the library of: Superior Sewing Machine & Supply LLC
